Upper Ball Joint Bolt-On GM HD Truck 1500HD/2500/3500 Silverado/Sierra 01-26 Axiom Supply

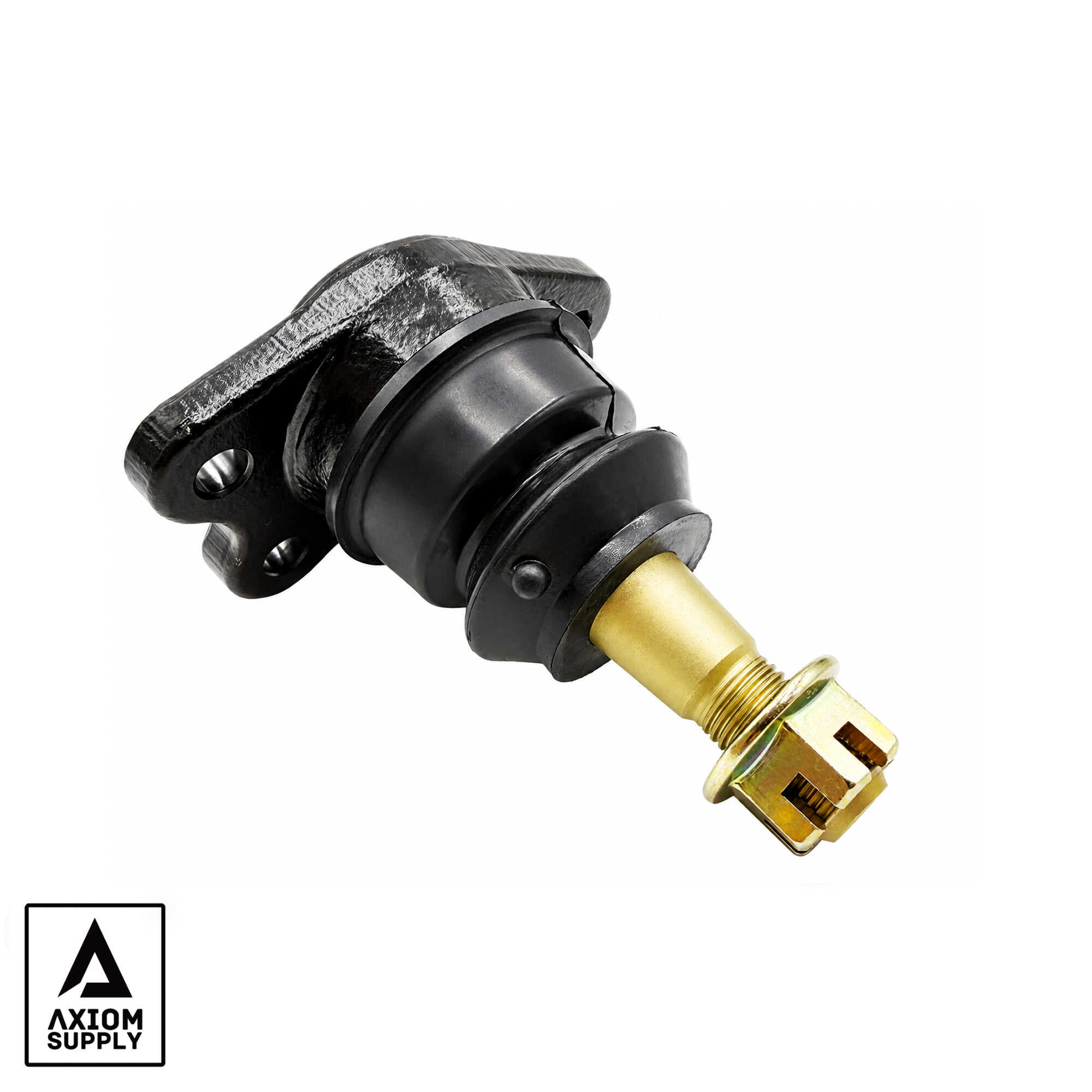

The Axiom Supply AX6292 Heavy-Duty Upper Ball Joint is designed for GM trucks and SUVs utilizing a bolt-on upper ball joint configuration.

Applications include:

• 2001-2007 Chevrolet Silverado 1500HD
• 2001-2007 GMC Sierra 1500HD
• 2001-2026 Chevrolet Silverado 2500HD
• 2001-2026 GMC Sierra 2500HD
• 2001-2026 Chevrolet Silverado 3500HD
• 2001-2026 GMC Sierra 3500HD
• 1988-1999 Chevrolet C/K 1500
• 1988-1999 GMC C/K 1500
• 1995-2000 Chevrolet Tahoe
• 1995-2000 GMC Yukon
• 1992-1999 Chevrolet Suburban 1500
• 1992-1999 GMC Suburban 1500

Fitment Notes:

• Compatible with many aftermarket upper control arms utilizing the K6292 bolt-on ball joint pattern. Complete interchange list below
• Direct replacement for applications specifying a K6292-style upper ball joint.
• Compatible with numerous aftermarket suspension systems utilizing a bolt-on upper ball joint design.
• GM 1500 applications must be equipped with factory aluminum or stamped-steel upper control arms.

Features:

• Grade 12.9 Extreme-Duty Ball Stud – The first bolt-on upper ball joint in its class equipped with a Grade 12.9 stud for exceptional tensile strength, fatigue resistance, and durability under heavy loads.
• Forged Steel Housing – Manufactured from high-strength forged steel to withstand the demands of towing, oversized tires, lifted suspensions, and off-road use.
• High-Articulation Design – Provides additional operating range and clearance to accommodate increased suspension travel.
• Precision Internal Bearing Assembly – Designed for smooth steering response, reduced deflection, and long-term durability.
• Self-Compensating Load System – Maintains proper internal loading as components wear to help preserve steering precision and reduce play.
• Greaseable Construction – Fully serviceable design allows periodic maintenance to maximize service life.
• Corrosion-Resistant Finish – Protective coatings help defend against rust, road salt, and harsh environmental conditions.
• Premium Installation Hardware – Includes high-strength Class 12.9 mounting hardware for secure installation.

The Axiom Supply AX6292 was developed with one objective: build the strongest bolt-on upper ball joint available for GM truck platforms.

At the heart of the design is a Grade 12.9 Extreme-Duty Ball Stud, delivering substantially greater strength than conventional ball joint designs. Combined with a forged steel housing and precision-engineered internal components, the AX6292 is built to handle the increased stresses generated by larger tires, lifted suspension systems, heavy towing, and demanding terrain.

A serviceable greaseable design promotes long-term reliability while the high-articulation housing geometry allows smooth operation throughout the suspension’s range of motion. The result is improved steering feel, increased durability, and confidence you can count on whether your truck works for a living or plays hard on the weekend.

Maintenance

Apply 2 – 3 pumps of grease during installation.

For continued performance, service with 1-2 pumps of grease every 5,000-7,000 miles. Avoid excessive greasing, as the dust boot is designed to exclude contaminants rather than retain excess lubricant.

Includes:

• (1) Axiom Supply AX6292 Heavy-Duty Upper Ball Joint (Sold as Induvial)
• Class 12.9 Installation Hardware Kit
• Grease Fittings; (2) 90 Degree (1) Straight fitting
• Gold Zinc Cotter Pin, Flanged Lock Nut

Torque Specifications:

• Ball Joint Mounting Hardware: 22 lb·ft
• Important: Do not use impact tools during installation.

Interchange

Axiom Supply AX6292, Moog K6292, ACDelco 45D0062, Delphi TC1604, Dorman B6292, Mevotech MK6292, Raybestos 500-1062, Trw JBJ7041, Napa 260-1313, Mas Industries B6292, Suspensia X07BJ0024

The Axiom No-Nonsense Lifetime Warranty

Our suspension and steering components are warrantied for life to the original purchaser against manufacturer defects, premature wear, or breakage. Push it to the limit-we don’t care. If the part lets you down, we’ll make it right.

Details:

• Material: Forged Steel
• Finish: Gold Zinc
• Warranty: Limited Lifetime Warranty

✅ Vehicle Compatibility

• 2001 – 2006 Chevrolet Silverado 3500 LT
• 2001 – 2006 GMC Sierra 3500 SLE
• 2001 – 2002 GMC Sierra 3500 SL
• 2001 – 2004 GMC Sierra 2500 SLE
• 2001 – 2026 Chevrolet Silverado 2500 HD LT
• 2001 – 2004 Chevrolet Silverado 2500 LT
• 2001 – 2006 Chevrolet Silverado 3500 LS
• 2001 – 2006 Chevrolet Silverado 2500 HD LS
• 2001 – 2004 Chevrolet Silverado 2500 LS
• 2001 – 2004 GMC Sierra 2500 SLT
• 2001 – 2004 Chevrolet Silverado 2500
• 2001 – 2006 GMC Sierra 3500 SLT
• 2001 – 2005 Chevrolet Silverado 3500
• 2001 – 2005 Chevrolet Silverado 2500 HD
• 2001 – 2002 GMC Sierra 2500 SL
• 2002 – 2005 GMC Sierra 3500
• 2002 – 2004 GMC Sierra 2500
• 2003 – 2026 Chevrolet Silverado 2500 HD WT
• 2003 – 2004 GMC Sierra 2500 WT
• 2004 – 2004 Chevrolet Silverado 2500 WT
• 2004 – 2004 Chevrolet Silverado 3500 WT
• 2004 – 2006 GMC Sierra 3500 WT
• 2006 – 2006 GMC Sierra 3500 SL
• 2006 – 2006 Chevrolet Silverado 3500 WT
• 2007 – 2026 Chevrolet Silverado 2500 HD LTZ
• 2007 – 2026 Chevrolet Silverado 3500 HD LT
• 2007 – 2026 GMC Sierra 3500 HD SLE
• 2007 – 2026 Chevrolet Silverado 3500 HD WT
• 2007 – 2026 GMC Sierra 3500 HD SLT
• 2007 – 2014 GMC Sierra 3500 HD WT
• 2007 – 2026 Chevrolet Silverado 3500 HD LTZ
• 2011 – 2026 GMC Sierra 3500 HD Denali
• 2015 – 2026 Chevrolet Silverado 3500 HD High Country
• 2015 – 2026 Chevrolet Silverado 2500 HD High Country
• 2015 – 2021 GMC Sierra 3500 HD
• 2020 – 2026 GMC Sierra 3500 HD AT4
• 2020 – 2026 Chevrolet Silverado 2500 HD Custom
• 2022 – 2026 GMC Sierra 3500 HD Pro
• 2024 – 2026 GMC Sierra 3500 HD Denali Ultimate
• 2024 – 2026 Chevrolet Silverado 2500 HD ZR2
