Special Flange (8×6.5) Wheel Bearing Assembly 05-Present Dana 60 Front w/ GM Lug Pattern Axiom Supply

The Axiom Supply Bearing Assembly is built for professionals and builders who demand strength, precision, and true bolt-on compatibility.

Unlike modified or redrilled hubs, this assembly features a purpose-built hybrid design combining a GM hub flange with a Ford Dana 60 unit bearing housing. The result is a stronger, cleaner, and more reliable solution for heavy-duty conversions.

Our proprietary bearing and hub structure reduces hub-face deflection under load, delivering:

• Tighter steering response
• Improved braking stability
• Increased durability under towing, oversized tires, and lifted suspension setups

Each unit comes fully assembled and installs as a direct bolt-in on left or right spindles. Typical installation time is around 2 hours, with no special modifications required.

Whether you’re building a hardcore off-road rig or upgrading a work truck, Axiom Supply delivers the performance serious builders expect.

Finally! A bearing that is a true direct bolt-on with an 8×6.5 (8×165.1) GM truck lug pattern!

Not drilled! Not machined!

This is a genuine GM-style hub flange affixed to a Ford Dana 60 unit bearing housing.

Perfect for:

• Straight axle swaps
• GM truck axle conversions
• Jeep and Toyota 1-ton axle builds
• Custom fabrication projects and more

Fitment:

• This wheel bearing assembly is designed to fit: 2005-Present Ford Dana 60 Front axle housings

Features:

• Precision Tapered Roller Bearings – Engineered with high-performance grease for smooth, maintenance-free operation.
• Premium Hardware – Grade 10.9 cold-formed, zinc-plated studs for superior tensile strength and corrosion resistance.
• Durable ABS Sensor – Maintains accurate signal transmission in extreme heat, mud, and moisture.
• True GM Lug Configuration – 8×6.5 inch (8×165.1) pattern with M14-1.5 fine thread studs. No modification required.

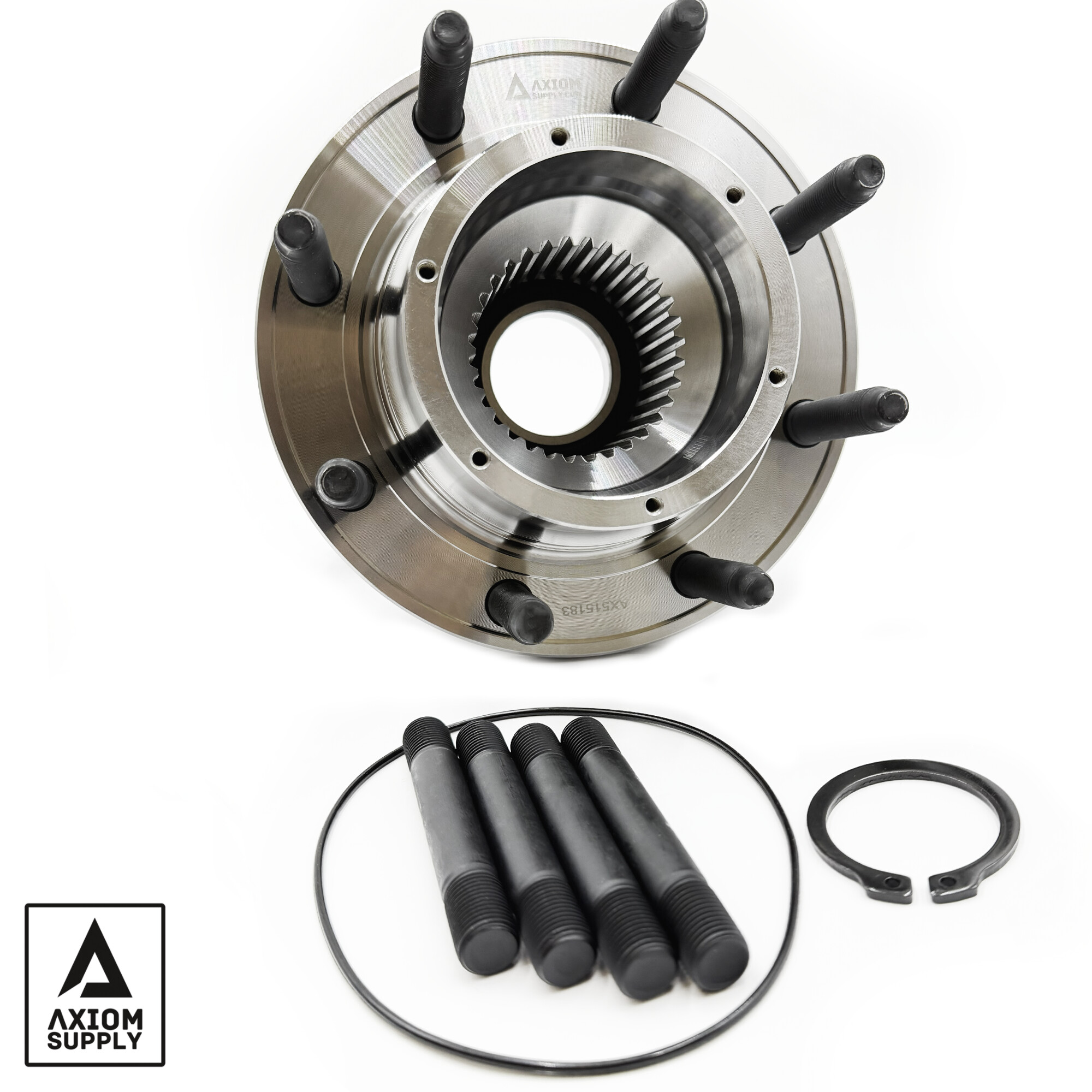

Includes:

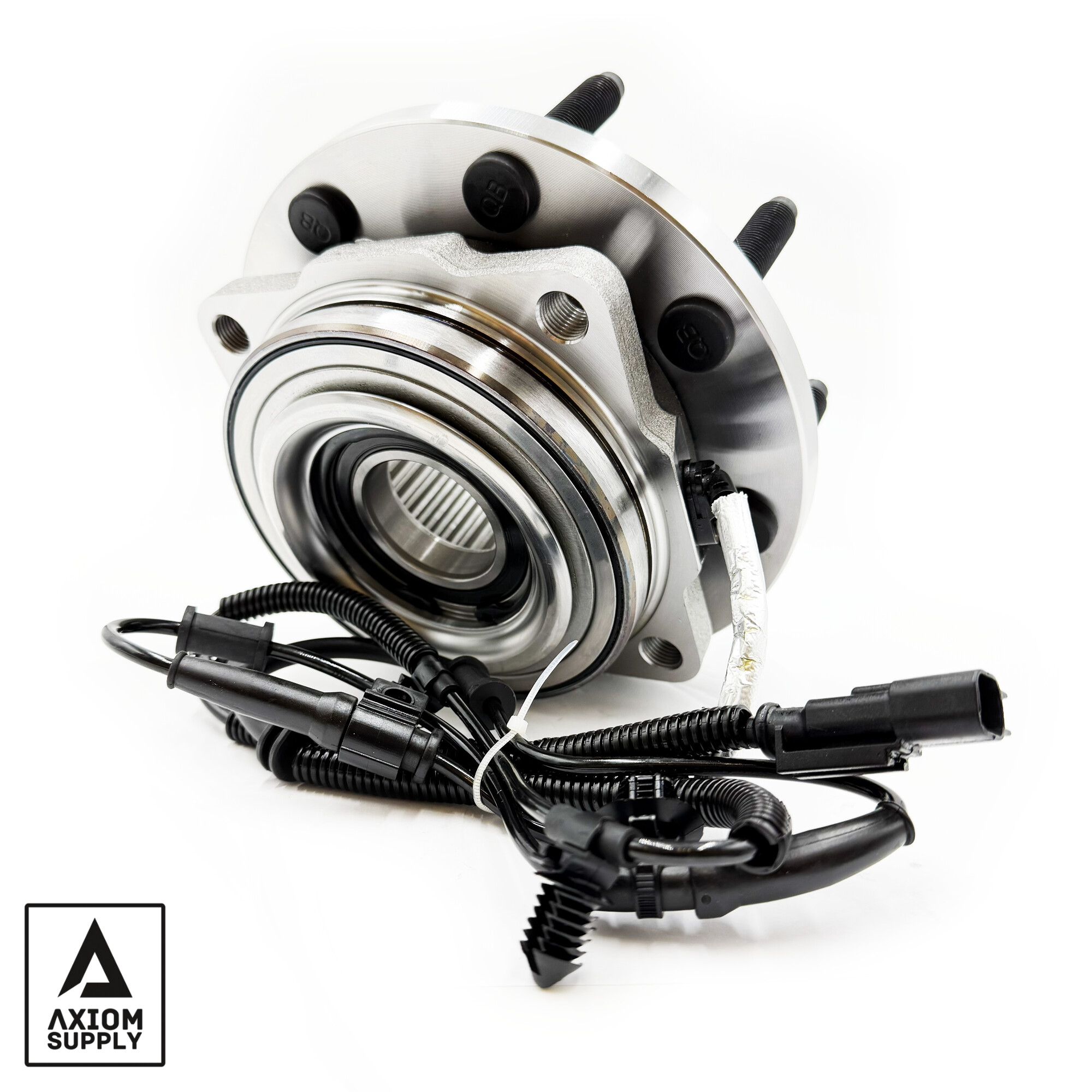

• (1) Wheel Bearing and Hub Assembly (with integrated ABS wire)
• (4) Mounting Bolts
• (1) O-ring
• (1) Retainer Ring

Torque Specifications:

• Hub Nut Procedure: While rotating the wheel, tighten to 30 ft-lbs (40 Nm). Loosen two full turns. Retighten to 17 – 24 ft-lbs (22 – 34 Nm) while rotating. Back off 175 degrees, then final torque to 17 ft-lbs (2 Nm).
• Spindle Bolts (4): 133 lb-ft
• Caliper Bolts (2): 166 lb-ft

The Axiom No-Nonsense Lifetime Warranty

Our suspension and steering components are warrantied for life to the original purchaser against any manufacturer defects, premature wear, or breakage. Push it to the limit-we don’t care. If the part lets you down, we will make it up to you!

Details:

• Thread: M14-1.5
• Finish: Zinc Plated
• Warranty: Limited Lifetime Warranty
