Jeep Wrangler Steering Stabilizer Relocation Bracket 2007-2018+ JK/JL/JT Clayton Off Road
470.00 ر.س
Available on backorder
Our Jeep Wrangler JL/JT & JK steering stabilizer bracket addresses many common issues.

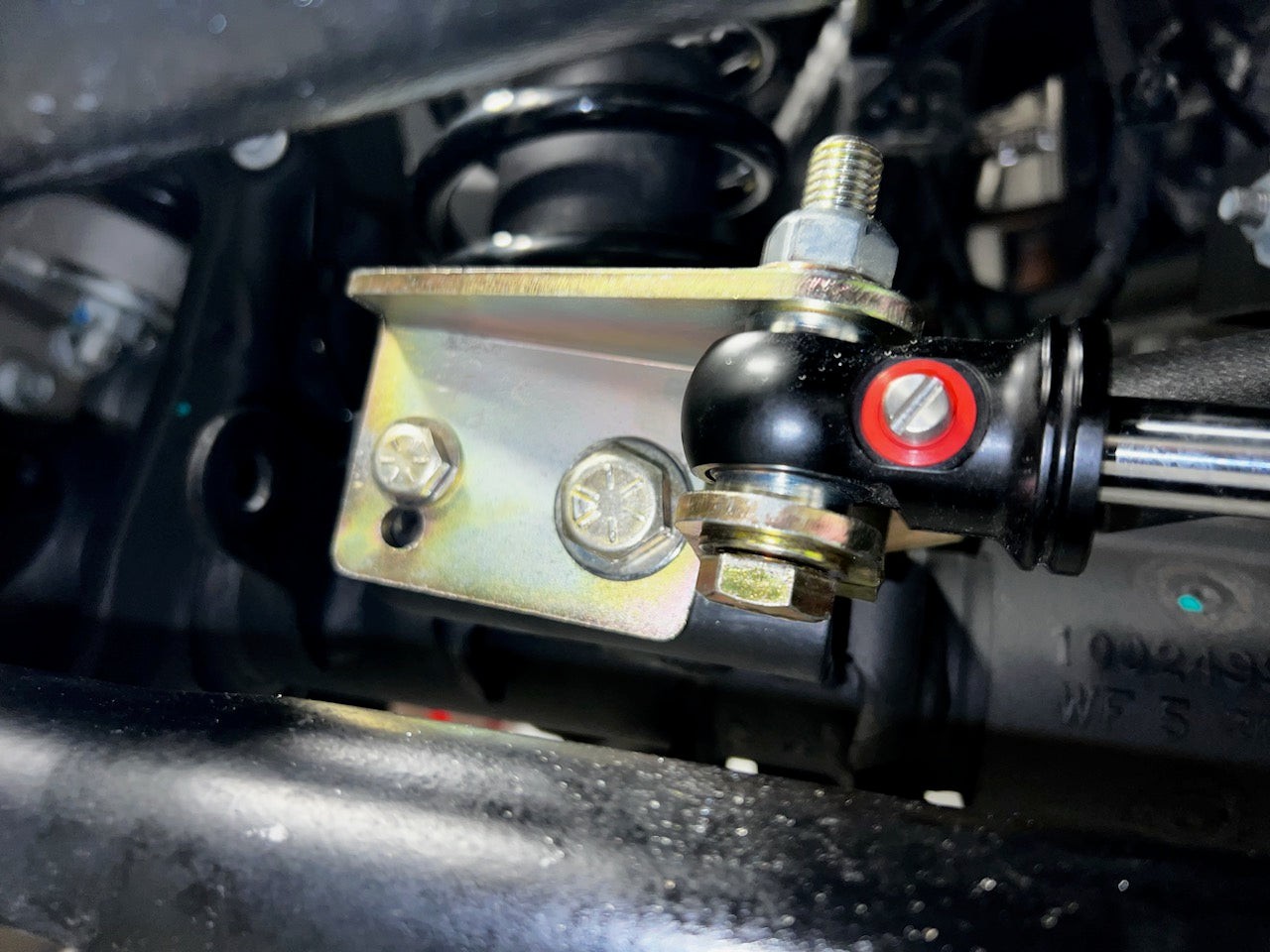

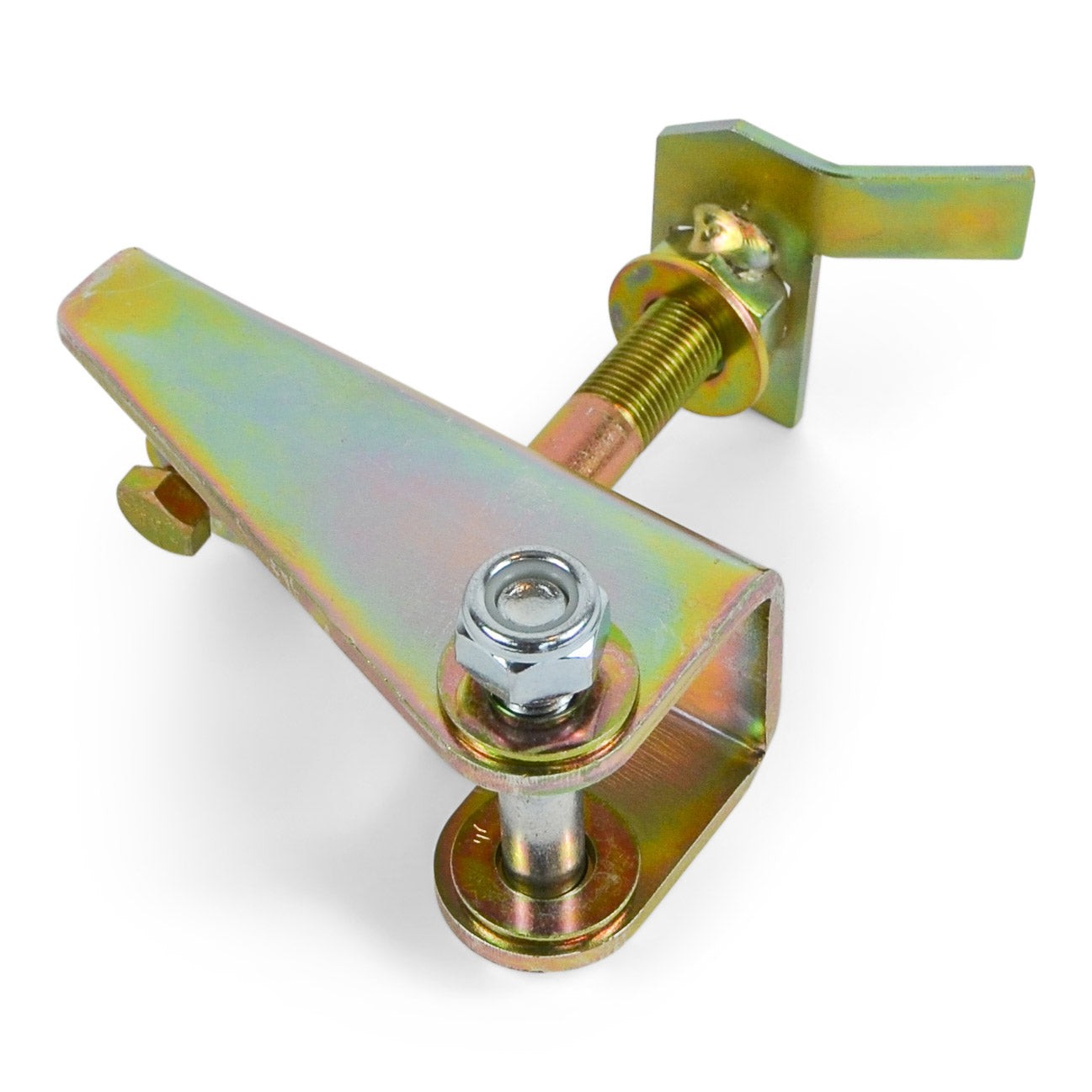

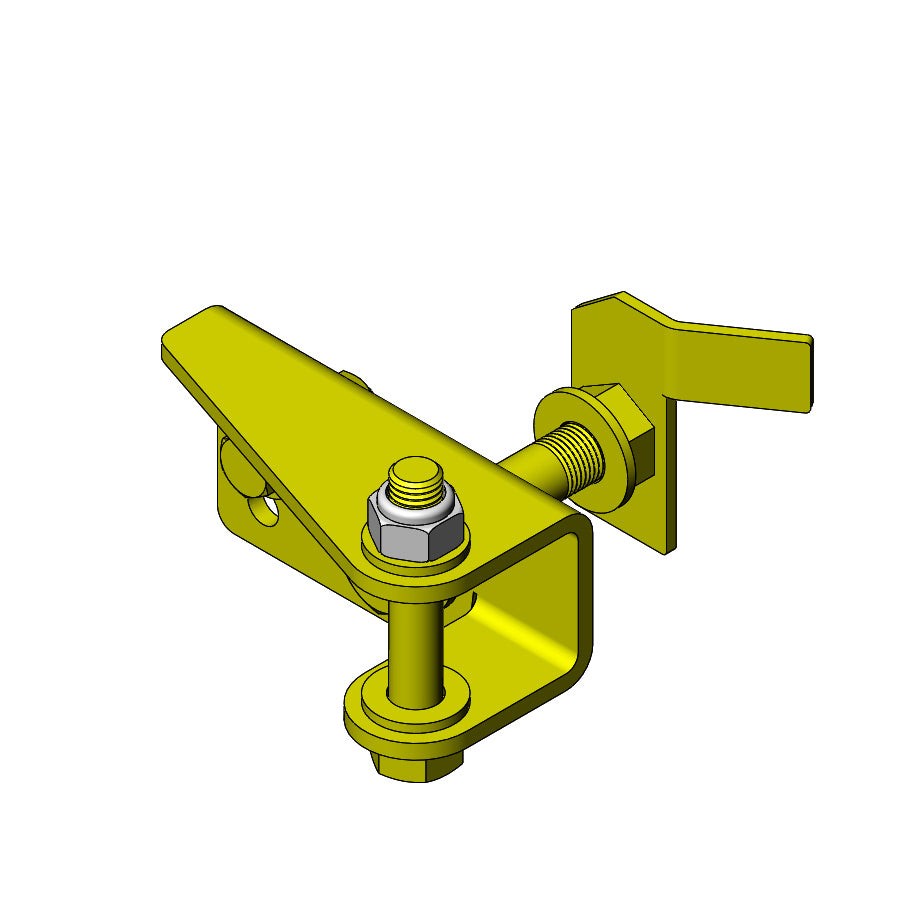

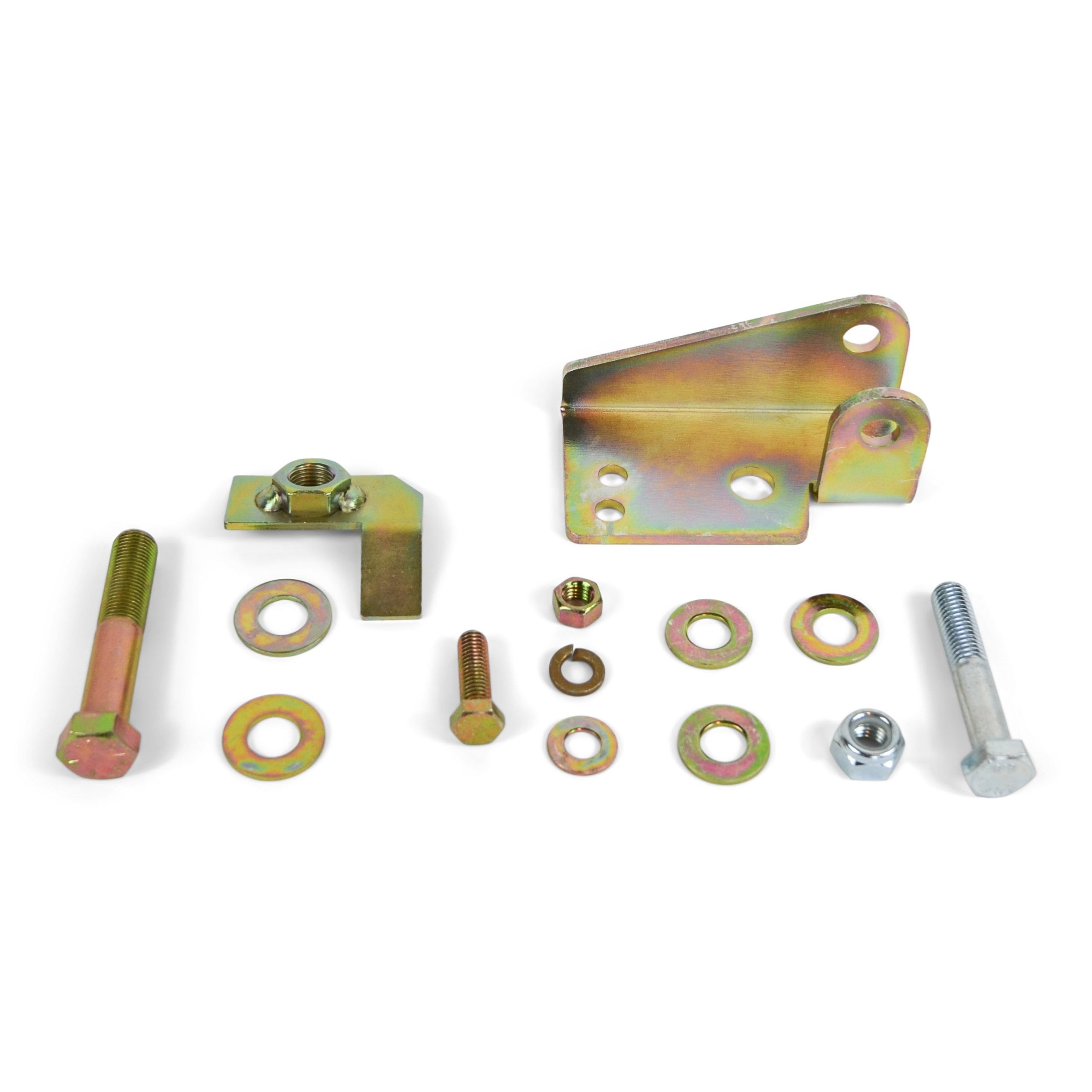

This is a simple bolt on 3/16s thick, gold zinc plated, double sheer bracket. It includes Grade 8 hardware to properly clamp our new CNC laser cut and bent bracket to your factory axle mount.

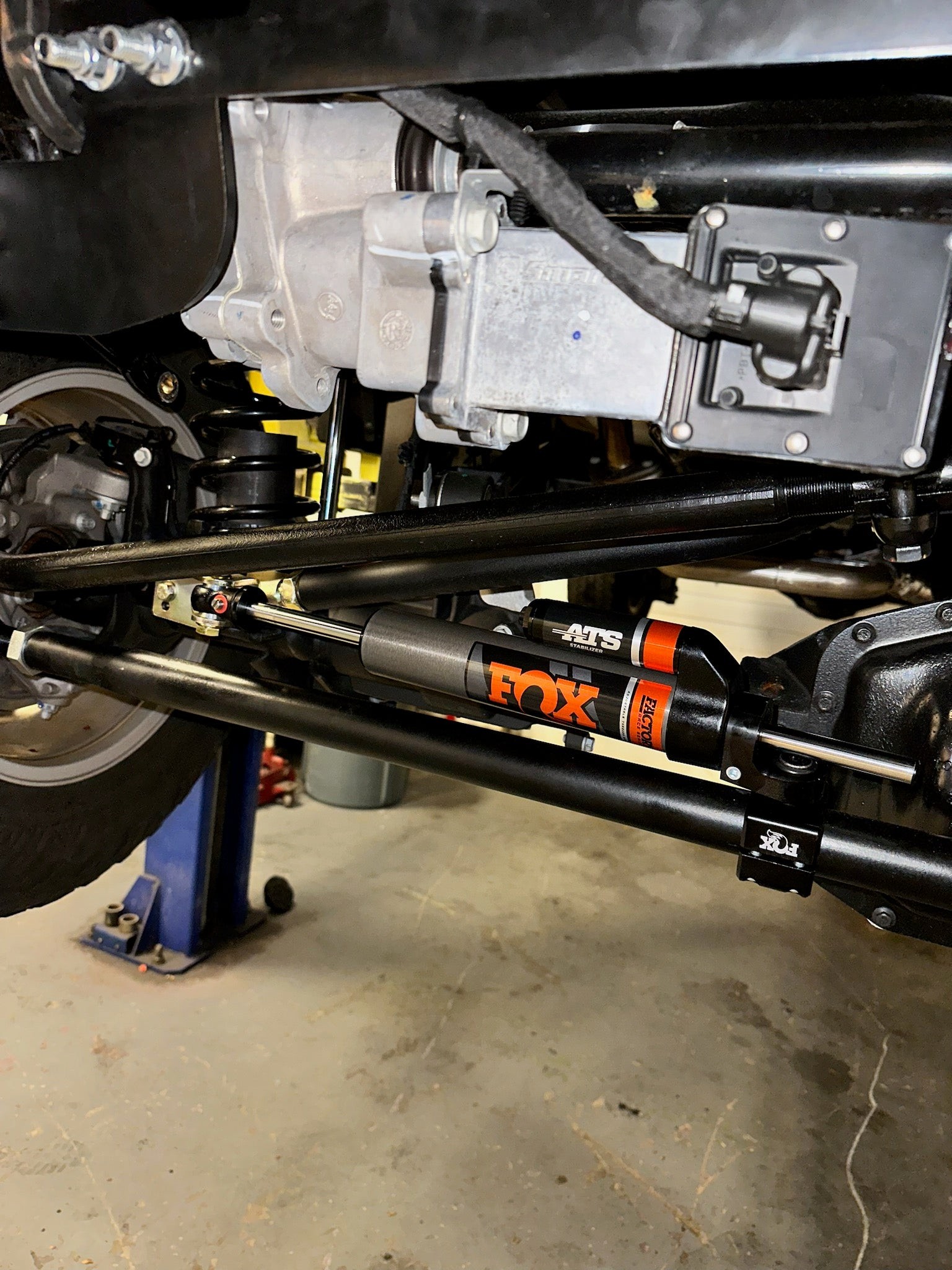

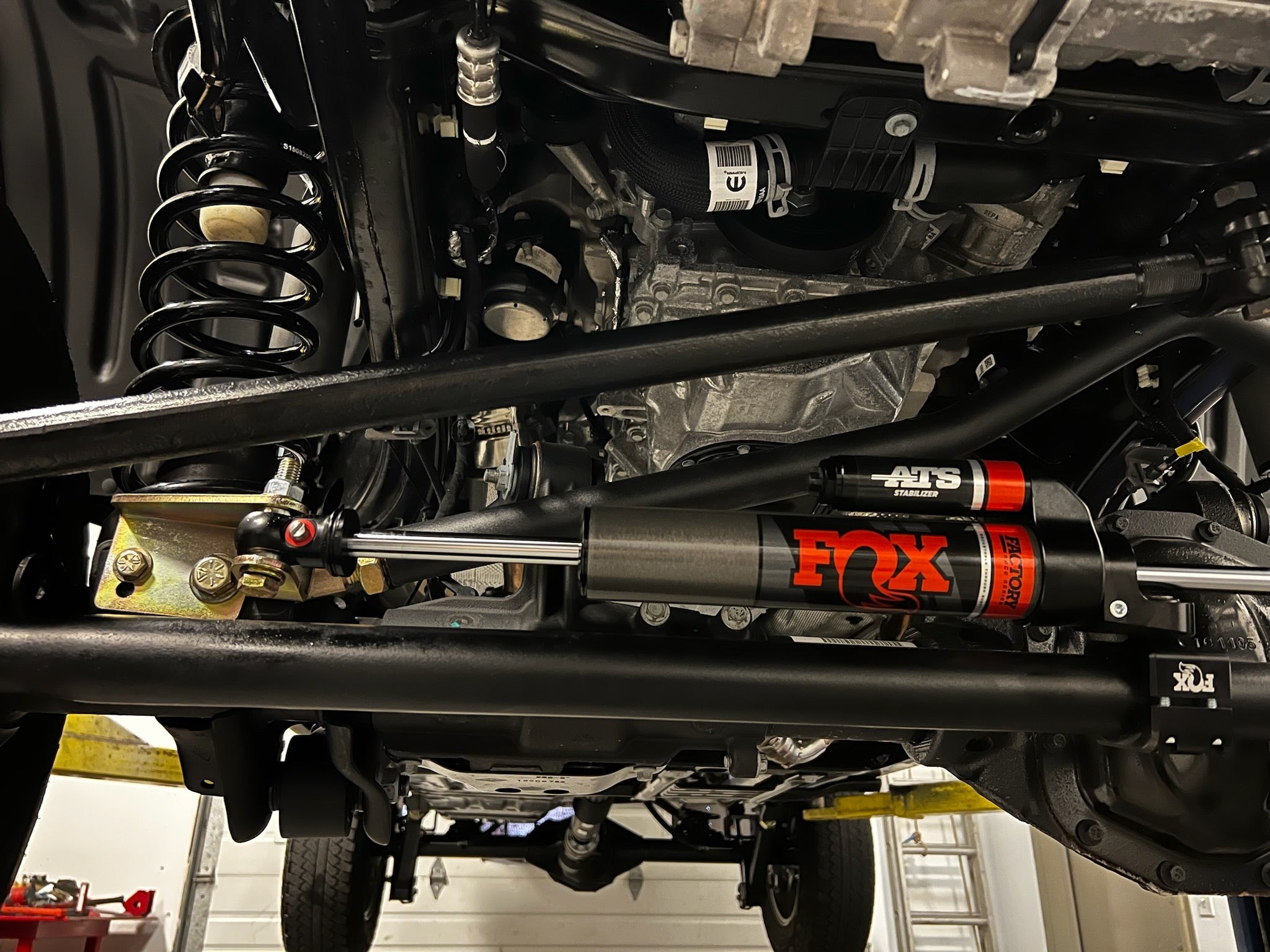

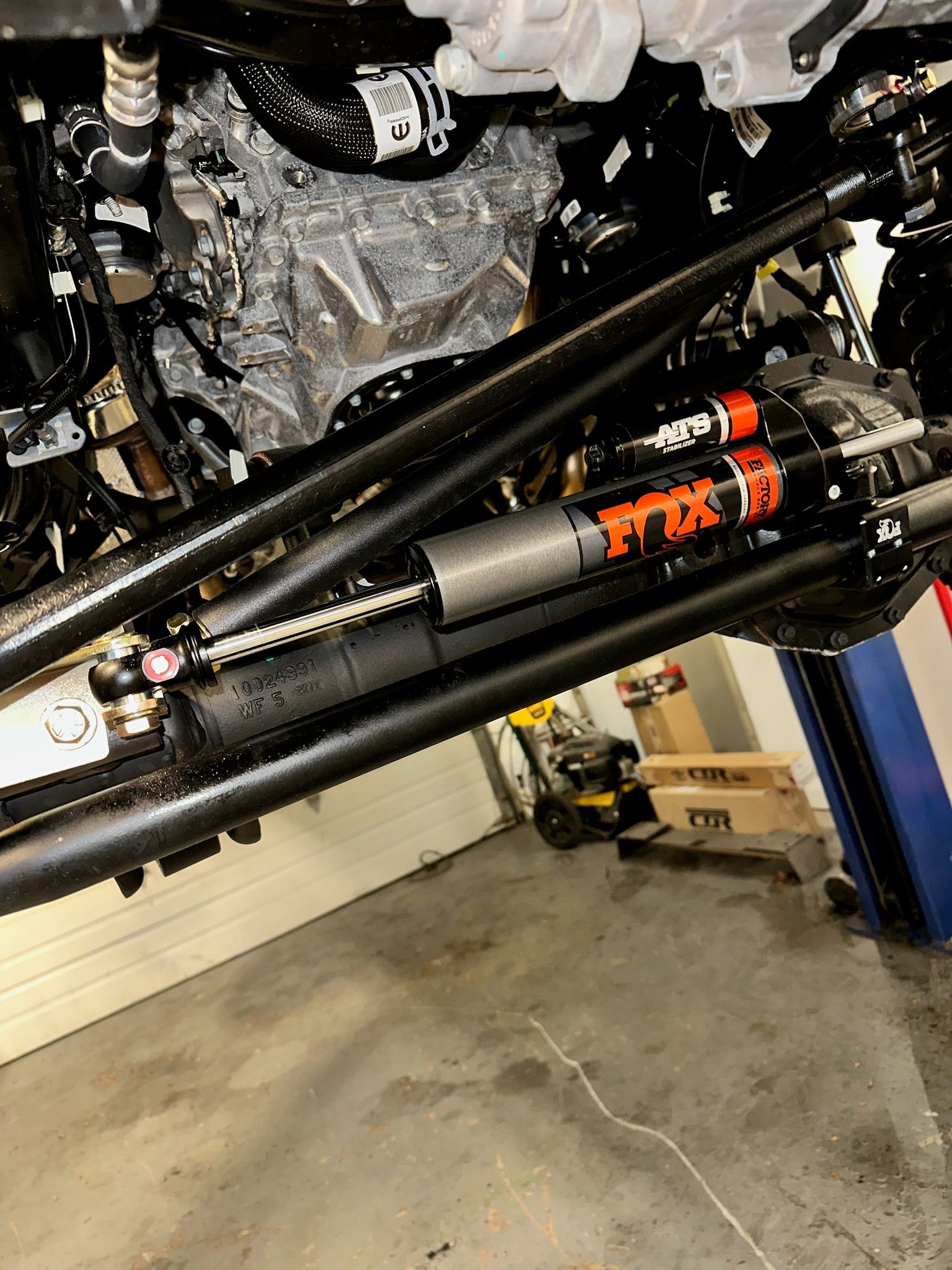

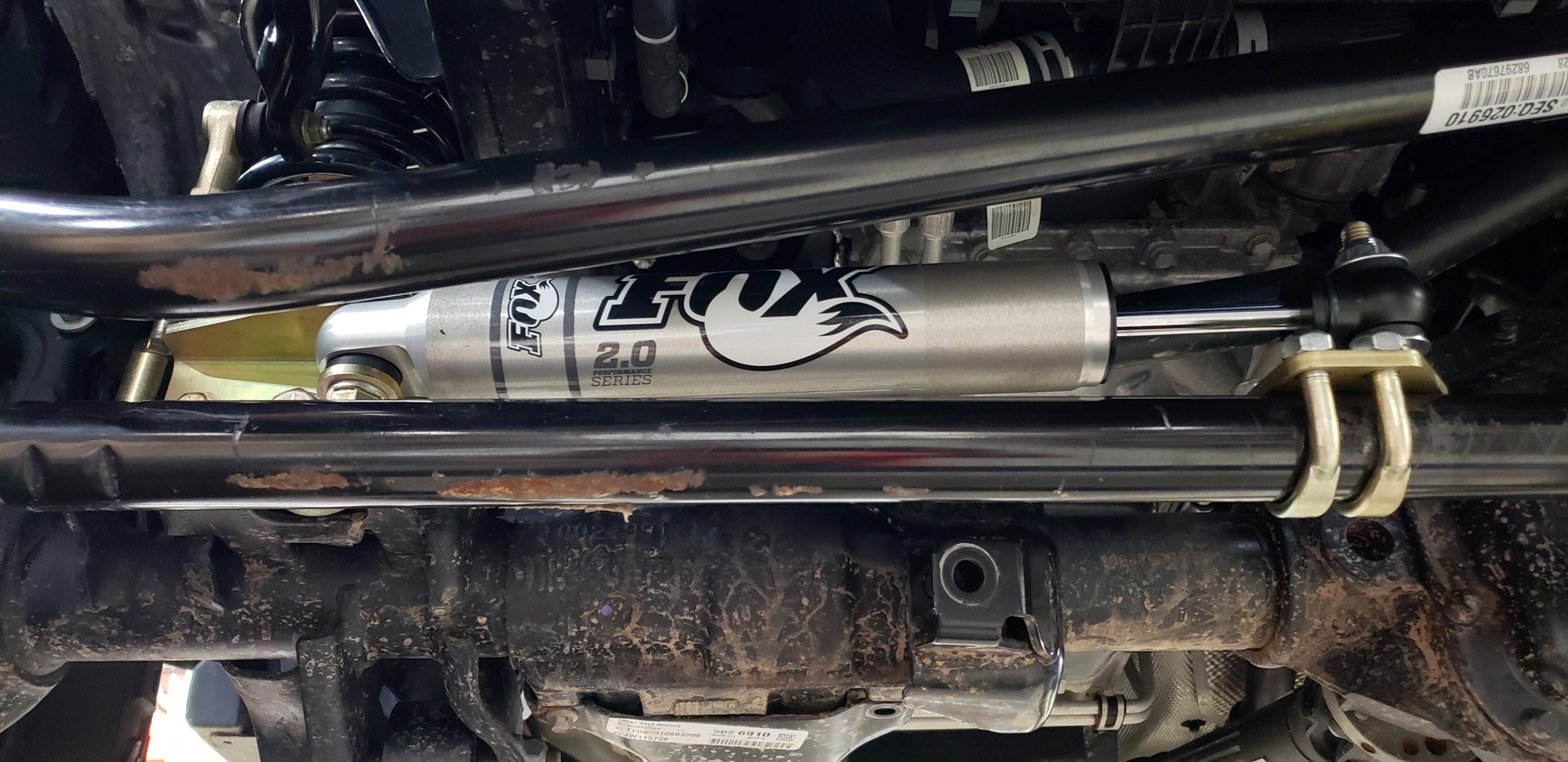

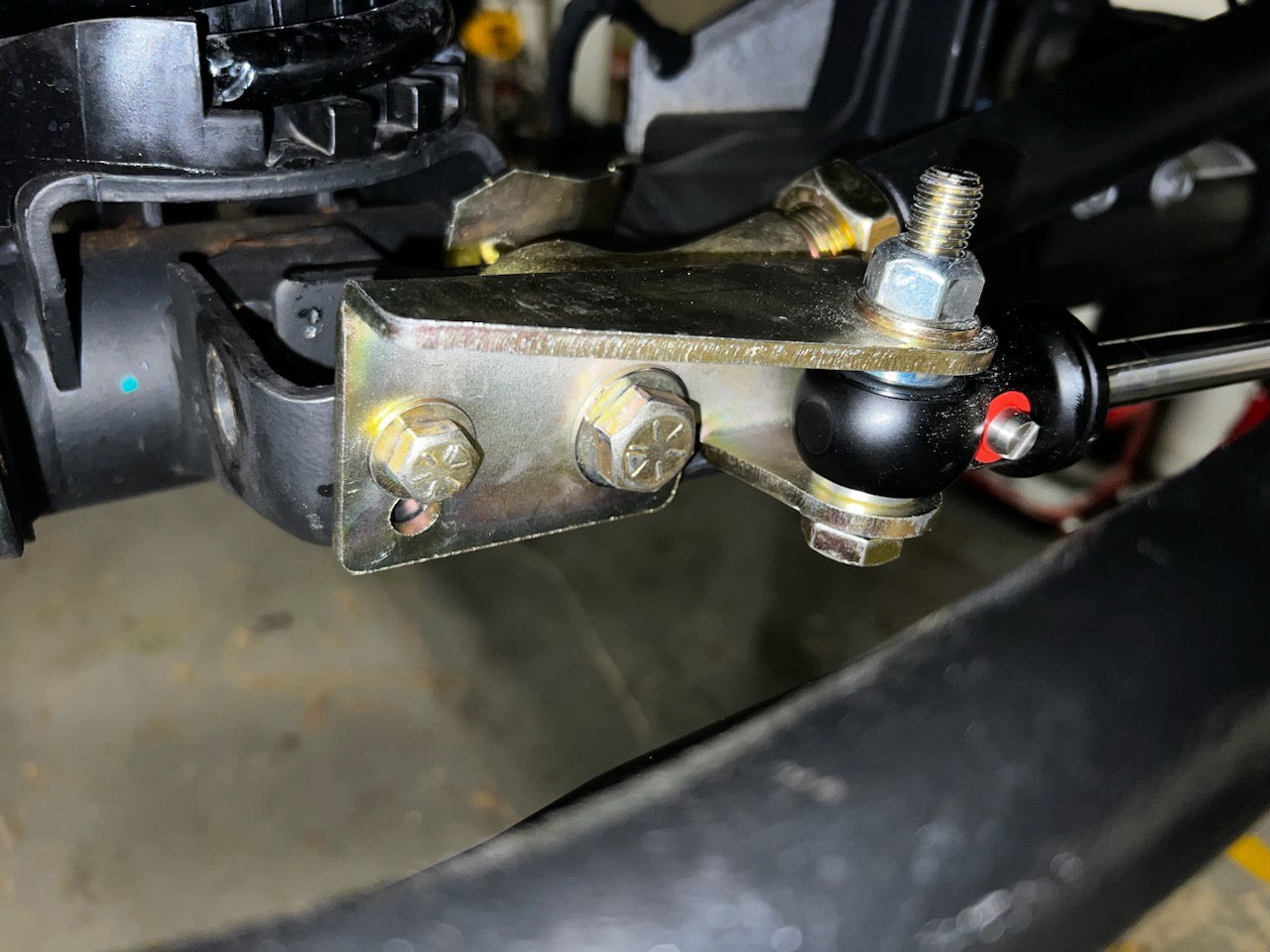

This allows you to raise your factory or aftermarket stabilizer above your tie rod eliminating the possibility of hitting it on rocks or other obstacles.

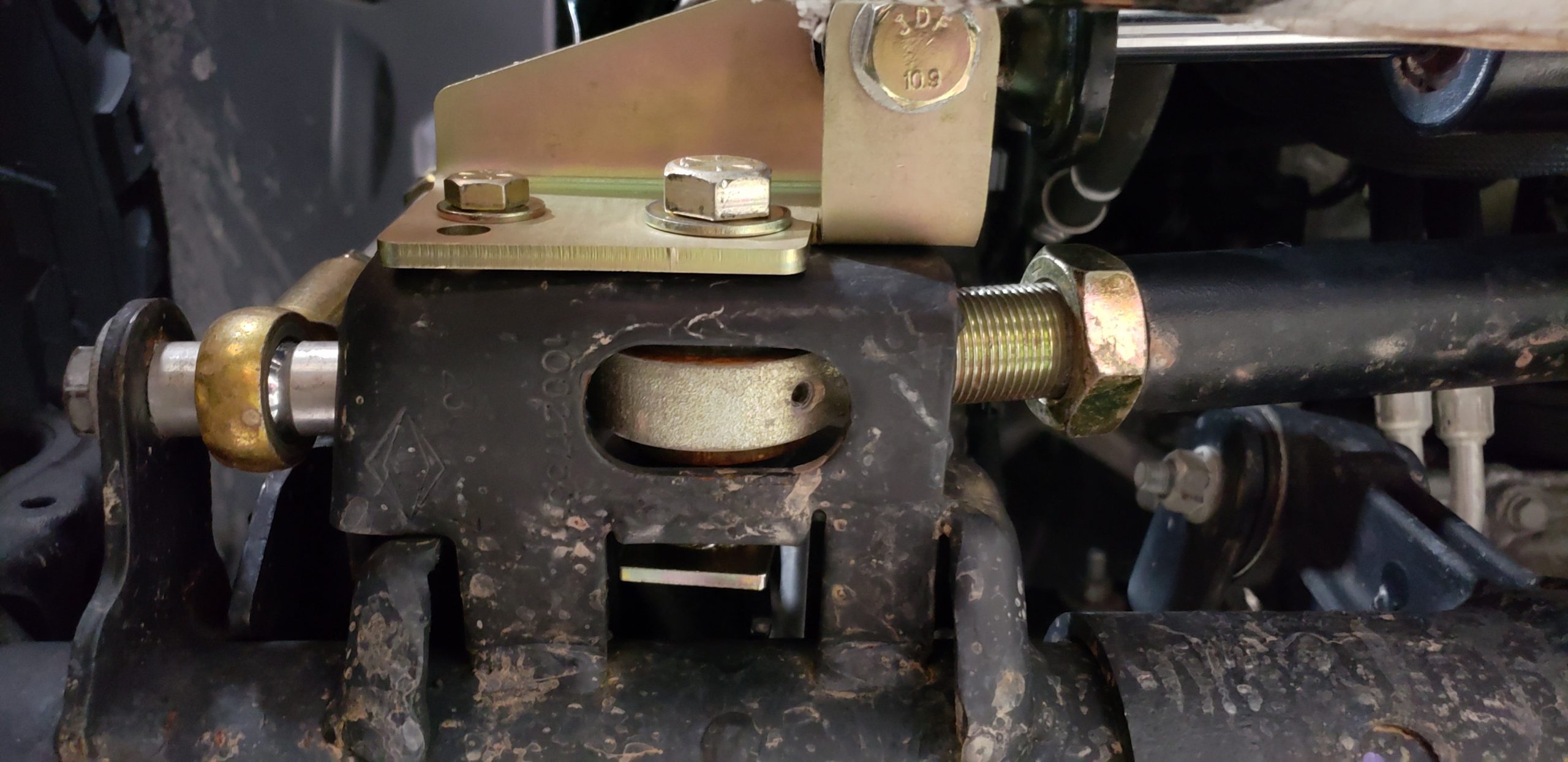

One of the main key features with our JL/JK stabilizer bracket is that it doesn’t block the track bar bolt head. Meaning you can check, and retorque your track bar hardware without removing this bracket or your stabilizer.
It also comes with a new Grade 8 track bar bolt (Torue Spec 146 FT-LBS), with a flanged nut. So this makes it easier to install this new bolt, but also makes it less likely for it to loosen up for two reasons.
One, the flange can not spin around without making contact with axle itself, and since the bolt normally has pressure on it, this makes it a lot less likely that it will loosen up.
Two, this is a top lock nut, which has the top thread section deformed to create two or three locking zones. This will easily start by hand, and then you will want to use a torque wrench and torque to 146 ft/lbs.
Vehicle Specific Notes:

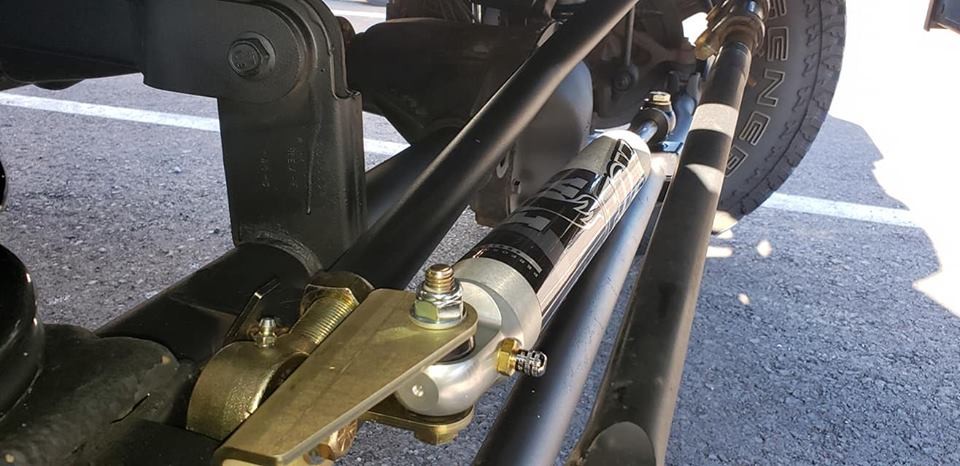

2007-2018 Jeep Wrangler JK will allow you to reuse your factory tie rod mount. Simply unbolt your steering stabilizer, bolt our new bracket on your axle, loosen and twist your stock tie rod mount above the tie rod, tighten and reinstall your stabilizer.
2018+ Jeep Wrangler Jl & 2020+ Gladiator will require one hole to be drilled to mount this bracket. And will also require an additional tie rod mount.
Part # COR-5209011 is the JL/JT packaged kit, which adds part # COR-5200940.
Please note these brackets are designed to be installed on factory axle bracket mounts, and also factory tie rods. Aftermarket tie rods will require proper mounting brackets.
Note: This kit uses a Top Lock – it will Not screw on by hand. Start by hand, then use torque wrench.
Uniquely shaped threads provide a vibration resistant friction fit, so the nut stays put. These all metal locknuts withstand higher temperatures than nylon insert locknuts.
Top thread section is deformed to create two or three locking zones; they start easily by hand, then must be wrenched into final position. Grade C equivalent to Grade 8.
IFI-100/107 Grade C. Ansi B1.1 Unc or Unf Class 2B thread requirement.
Zinc plating, retards the corrosion rate in a normal atmosphere.
✅ Vehicle Compatibility
- 2007 – 2010 Jeep Wrangler X
- 2007 – 2024 Jeep Wrangler Rubicon
- 2007 – 2010 Jeep Wrangler Unlimited X
- 2007 – 2024 Jeep Wrangler Unlimited Sahara
- 2007 – 2024 Jeep Wrangler Unlimited Rubicon
- 2007 – 2017 Jeep Wrangler Sahara
- 2010 – 2024 Jeep Wrangler Unlimited Sport
- 2010 – 2024 Jeep Wrangler Sport
- 2011 – 2011 Jeep Wrangler 70th Anniversary
- 2011 – 2011 Jeep Wrangler Unlimited 70th Anniversary
- 2016 – 2016 Jeep Wrangler Unlimited 75th Anniversary
- 2016 – 2016 Jeep Wrangler 75th Anniversary
- 2016 – 2016 Jeep Wrangler Sport S
- 2016 – 2016 Jeep Wrangler Unlimited Sport S
- 2018 – 2018 Jeep Wrangler JK Unlimited Sport S
- 2018 – 2019 Jeep Wrangler Unlimited Moab
- 2018 – 2018 Jeep Wrangler JK Unlimited Sahara
- 2018 – 2018 Jeep Wrangler JK Unlimited Sport
- 2018 – 2018 Jeep Wrangler JK Sport S
- 2018 – 2024 Jeep Wrangler Sport S
- 2018 – 2018 Jeep Wrangler JK Unlimited Rubicon
- 2018 – 2024 Jeep Wrangler Unlimited Sport S
- 2018 – 2018 Jeep Wrangler JK Sport
- 2018 – 2018 Jeep Wrangler JK Sahara
- 2018 – 2018 Jeep Wrangler JK Rubicon
- 2020 – 2024 Jeep Gladiator Overland
- 2020 – 2020 Jeep Gladiator Launch Edition
- 2020 – 2026 Jeep Gladiator Mojave
- 2020 – 2026 Jeep Gladiator Sport S
- 2020 – 2020 Jeep Gladiator Altitude
- 2020 – 2026 Jeep Gladiator Sport
- 2020 – 2026 Jeep Gladiator Rubicon
- 2021 – 2021 Jeep Gladiator 80th Anniversary
- 2021 – 2026 Jeep Gladiator Willys
- 2021 – 2024 Jeep Wrangler Unlimited Sport Altitude
- 2021 – 2024 Jeep Wrangler Unlimited Willys
- 2021 – 2024 Jeep Wrangler Unlimited Willys Sport
- 2021 – 2021 Jeep Wrangler 80th Anniversary
- 2021 – 2024 Jeep Wrangler Unlimited Sahara Altitude
- 2021 – 2024 Jeep Wrangler Unlimited Sahara 4xe
- 2021 – 2024 Jeep Gladiator Willys Sport
- 2021 – 2024 Jeep Wrangler Unlimited Rubicon 4xe
- 2021 – 2024 Jeep Wrangler Unlimited Rubicon 392
- 2021 – 2024 Jeep Wrangler Willys Sport
- 2021 – 2024 Jeep Wrangler Willys
- 2021 – 2024 Jeep Gladiator High Altitude
- 2021 – 2022 Jeep Wrangler Unlimited Islander
- 2021 – 2021 Jeep Wrangler Unlimited 80th Anniversary
- 2021 – 2022 Jeep Wrangler Islander
- 2021 – 2023 Jeep Wrangler Freedom
- 2021 – 2026 Jeep Gladiator Texas Trail
- 2021 – 2021 Jeep Wrangler Unlimited High Altitude
- 2021 – 2024 Jeep Wrangler Unlimited High Altitude 4xe
- 2021 – 2023 Jeep Wrangler Unlimited Freedom
- 2022 – 2022 Jeep Gladiator Altitude
- 2023 – 2024 Jeep Wrangler Unlimited High Altitude
- 2023 – 2024 Jeep Wrangler Unlimited High Tide
- 2023 – 2024 Jeep Wrangler Unlimited Willys 4xe
- 2023 – 2024 Jeep Gladiator Freedom
- 2024 – 2025 Jeep Gladiator High Tide
- 2024 – 2026 Jeep Gladiator Rubicon X
- 2024 – 2025 Jeep Gladiator NightHawk
- 2024 – 2026 Jeep Gladiator Mojave X
- 2024 – 2024 Jeep Gladiator Jeep Beach
- 2026 – 2026 Jeep Gladiator Shadow Ops
- 2026 – 2026 Jeep Gladiator Willys ’41
- 2026 – 2026 Jeep Gladiator 85th Anniversary Edition
- 2026 – 2026 Jeep Gladiator Sahara
