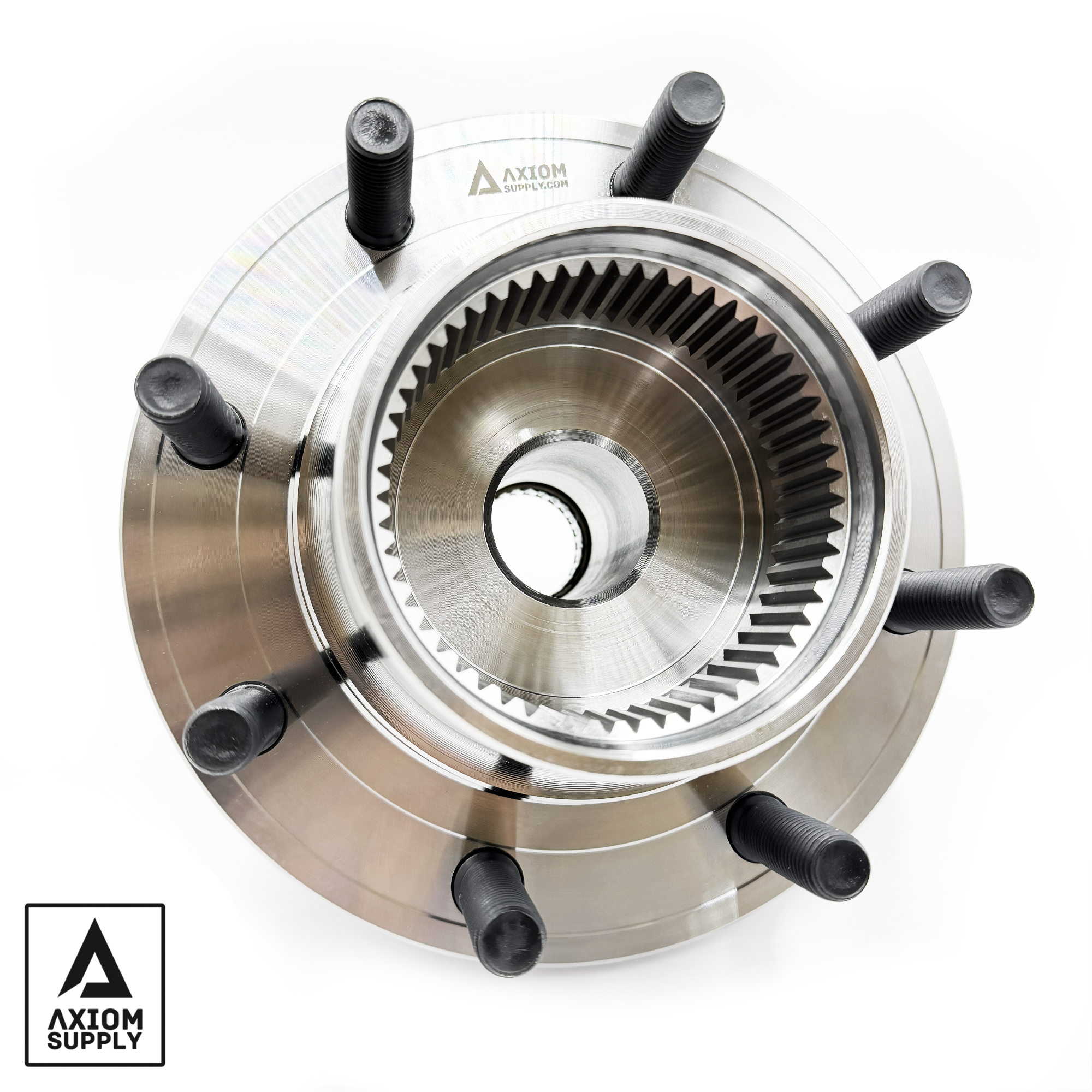

Front Wheel Bearing and Hub Assembly Fine Thread Studs For 1999–2004 Ford F250/F350 Superduty 4WD 2000–2005 Excursion Axiom Supply

This premium front wheel bearing and hub assembly from Axiom Supply is designed for Ford Super Duty trucks that use fine thread wheel studs.

It fits F250 and F350 four wheel drive models from 1999 through 2004 and Ford Excursion models from 2000 through 2005 equipped with fine thread studs.

This assembly provides a complete bolt in replacement for worn, noisy, or failed front hubs. It is engineered to handle the heavy loads, towing demands, and off road use that these trucks are built for.

Important Fitment Note: This bearing assembly fits only Ford Super Duty models from 1999 through 2004 and Excursion models from 2000 through 2005 that use fine thread wheel studs. It will not fit vehicles using coarse thread studs.

Features and Benefits:

• Precision tapered roller bearings pre packed with high performance grease for smooth, maintenance free operation
• Grade 10.9 cold formed zinc plated studs for exceptional tensile strength and corrosion resistance
• Durable ABS sensor built to maintain accurate signal transmission in heat, mud, and moisture
• Configuration: eight M14 1.50 fine thread lug studs for correct OE style fitment
• Complete bolt in assembly that works on either left or right spindle

The Axiom Supply bearing assembly is built for drivers who demand professional level reliability from their heavy duty Ford trucks. Developed with a proprietary bearing and hub structure, this unit is designed to reduce hub face deflection under load.

That helps deliver tighter steering response, improved braking stability, and increased durability when towing, running oversized tires, or operating a lifted suspension.

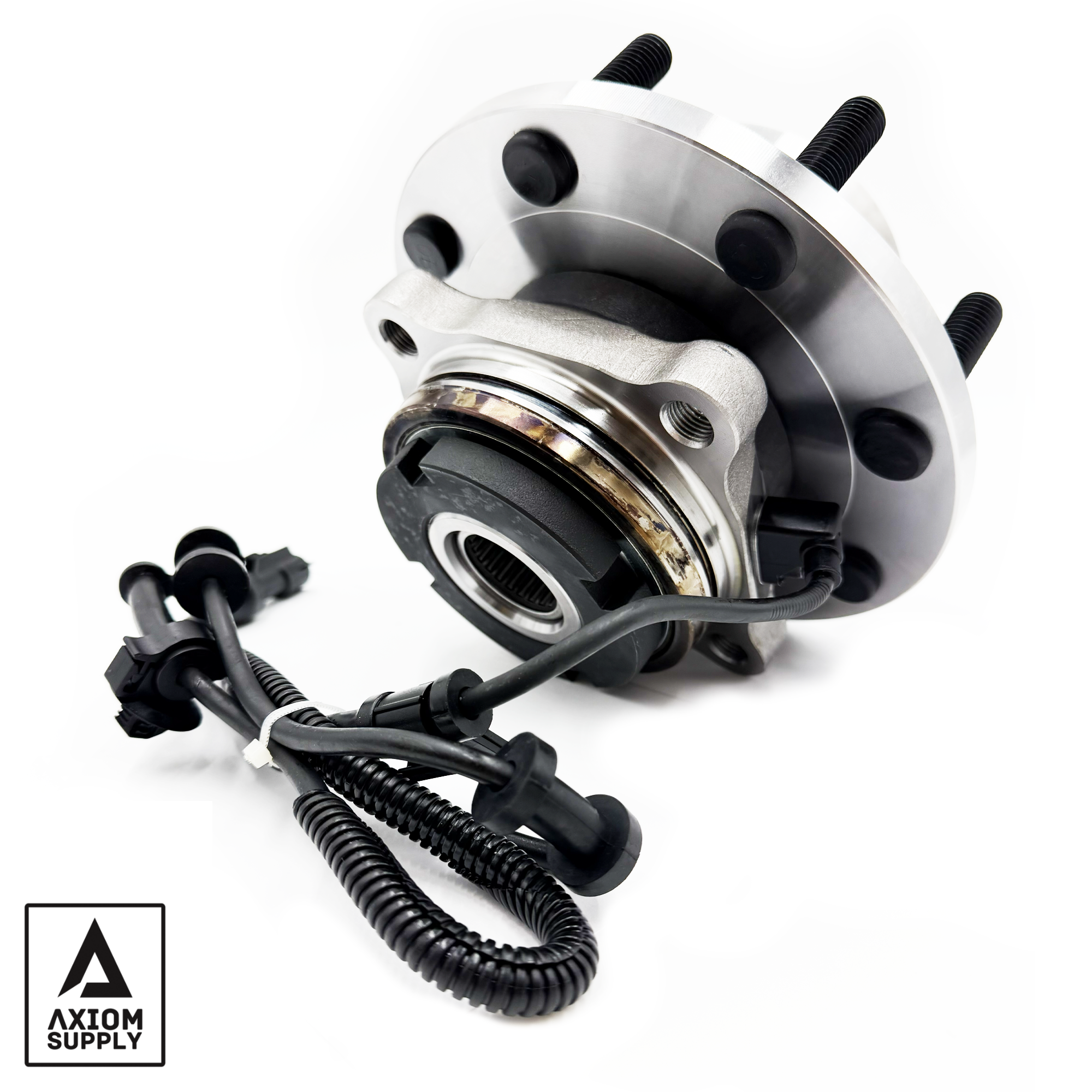

Each hub arrives as a complete bolt in unit, ready to install with an integrated ABS wire and new hardware.

Installation typically takes around two hours and requires no special modifications. Whether your truck spends its time on job sites, highways, or rough trails, this assembly is built to provide the strength, precision, and longevity serious owners expect.

Includes:

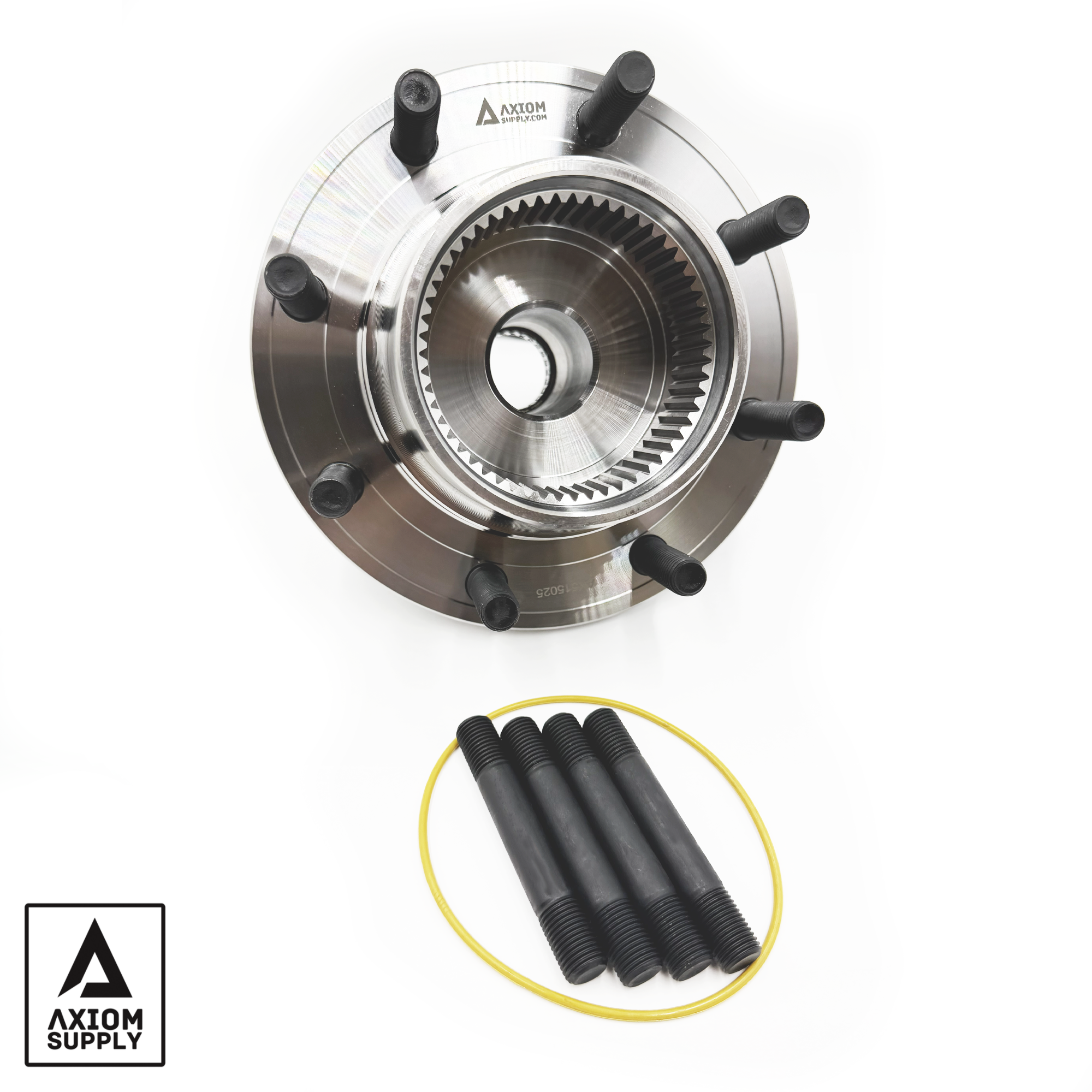

• One wheel bearing and hub assembly with integrated ABS wire
• Four mounting bolts
• One O-ring

Torque Specifications:

• Initial hub nut torque: thirty pound foot (forty newton meter) while rotating the wheel, then loosen by two full turns
• Rotate the brake disc and tighten nut to seventeen to twenty four pound foot (twenty two to thirty four newton meter)
• Turn nut counterclockwise one hundred seventy five degrees
• Final hub nut torque: seventeen pound foot (two newton meter)
• Spindle bolts (four): one hundred thirty three pound foot
• Caliper bolts (two): one hundred sixty six pound foot

Interchange Numbers:

• Timken SP580205
• Doc’s DH515056
• Kryptonite KR205
• Autopart International 1411-248391
• BCA WE61564
• Carquest 94-248391
• Centric 40265002
• Dorman 951-826
• Durago 29515056
• FAG 102188
• Ford 3C3Z1104A
• GMB 725-0166
• GSP 116056
• Mevotech H515056
• Moog 515056
• Motorcraft 3C3Z1104A, HUB111, HUB223
• PT515056
• NAPA BR930438
• SKF BR930438
• Axiom AX515056

The Axiom no nonsense lifetime warranty applies to this hub assembly for the original purchaser. Our suspension and steering components are warrantied for life against manufacturer defects, premature wear, or breakage. If the part ever lets you down, we will make it right.

✅ Vehicle Compatibility

• 1999 – 2004 Ford F-350 Super Duty Lariat
• 1999 – 2004 Ford F-250 Super Duty Lariat
• 1999 – 2004 Ford F-250 Super Duty XL
• 1999 – 2004 Ford F-350 Super Duty XL
• 1999 – 2004 Ford F-250 Super Duty XLT
• 1999 – 2004 Ford F-350 Super Duty XLT
• 2000 – 2005 Ford Excursion Limited
• 2000 – 2005 Ford Excursion XLT
• 2003 – 2005 Ford Excursion Eddie Bauer
• 2003 – 2004 Ford F-350 Super Duty King Ranch
• 2004 – 2004 Ford F-250 Super Duty Harley-Davidson Edition
• 2004 – 2004 Ford F-350 Super Duty Harley-Davidson Edition
• 2004 – 2004 Ford F-250 Super Duty King Ranch
• 2004 – 2005 Ford Excursion XLS
