17-19 Ford Super Duty (F250/F350/F450) SDHQ Built Billet Battery Terminal Kit SDHQ Offroad

Upgrade your 2017-2019 Ford Super Duty (F250/F350/F450) OEM sheet metal battery terminals with our Billet 6061 Aluminum Battery Terminals. This simple upgrade allows you to run multiple off-road accessories from your main battery or secondary battery without splicing and cutting wires.

Vehicle Fitment:

• 2017-2019 Ford Super Duty (F250/F350/F450)
• If you have a 2020-Current Super Duty we have a Billet Battery Terminal Kit as well
• 20-Current Ford Super Duty (F250/F350/F450) SDHQ Built Billet Battery Terminal Kit
• This kit is designed for Super Duty owner with a dual battery set up.
• From Ford, there is the factory option to get dual battery in all Super Duty’s. This kit will not allow a customer to upgrade to a dual battery, this kit only includes the terminals and required hardware to use with dual batteries.

Key Features:

• 3D CAD designed, engineered and built in-house for our typical SDHQ Built quality, fit, and finish
• Upgrades factory sheet metal terminals.
• Positive and Negative Billet 6061 Aluminum Terminals.
• Cutting the factory terminals off is required.
• 1-2 AWG Copper Compression Lugs included to replace terminals.
• (2) 3/8 inch, (1) 5/16 inch and (2) 1/4 inch mounting options for accessories.
• Stainless Steel Hardware with included Anti-Seize Compound.
• Recommended for use with sealed batteries.
• Upgraded 16 inch Negative 6GA Battery to Body wire included.

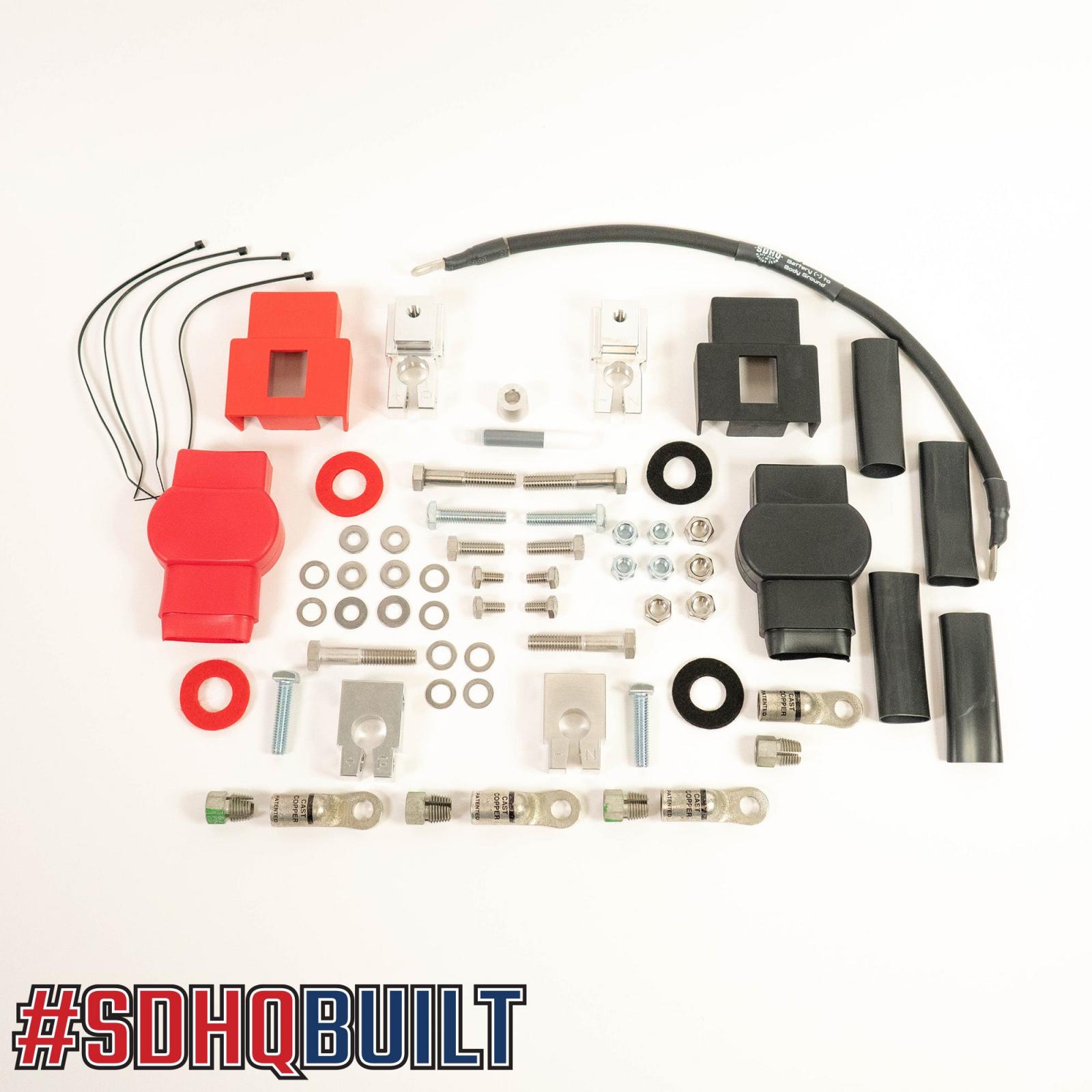

What’s Included:

• SDHQ Built Complete Billet Battery Terminal Kit – SDHQ-02-3003-C2 (Main Battery)
  • QTY 1. Billet Positive Battery Terminal
  • QTY 1. SDHQ Billet Negative Battery Terminal
  • QTY 1. SDHQ Negative Terminal Stud
  • QTY 1. Hardware Kit
  • QTY 1. Protective Positive Boot
  • QTY 1. Protective Negative Boot
  • QTY 1. Red Post Washer
  • QTY 1. Black Post Washer
• SDHQ Built Billet Secondary Battery Terminal Kit – SDHQ-02-3003-C1 (Secondary Battery)
  • QTY 1. Billet Positive Battery Terminal
  • QTY 1. SDHQ Billet Negative Battery Terminal
  • QTY 1. Protective Positive Boot
  • QTY 1. Protective Negative Boot
  • QTY 4. 1-2 Gauge Compression Lug Nut Kit
  • QTY 1. 6GA Negative Battery to Body 16 inch Ground Cable

Torque Specifications:

• Torque 1/4 inch-20 Hardware to 4 ft-lb.
• Torque 5/16 inch-18 Hardware to 8 ft-lb.
• Torque 3/8 inch-16 Hardware to 18 ft-lb.

✅ Vehicle Compatibility

• 2017 – 2019 Ford F-250 Super Duty King Ranch
• 2017 – 2019 Ford F-350 Super Duty King Ranch
• 2017 – 2019 Ford F-250 Super Duty Lariat
• 2017 – 2019 Ford F-350 Super Duty Lariat
• 2017 – 2019 Ford F-250 Super Duty Platinum
• 2017 – 2019 Ford F-350 Super Duty Platinum
• 2017 – 2019 Ford F-250 Super Duty XL
• 2017 – 2019 Ford F-350 Super Duty XL
• 2017 – 2019 Ford F-250 Super Duty XLT
• 2017 – 2019 Ford F-350 Super Duty XLT
• 2018 – 2019 Ford F-250 Super Duty Limited
• 2018 – 2019 Ford F-350 Super Duty Limited

🔧 Installation & Guides

📥 Download Installation Guide (PDF)
