Lifetime Warranty Rear Wheel Bearing Assembly Jeep Wrangler JL Dana 44 Full-Float 18 – 26 Axiom Supply

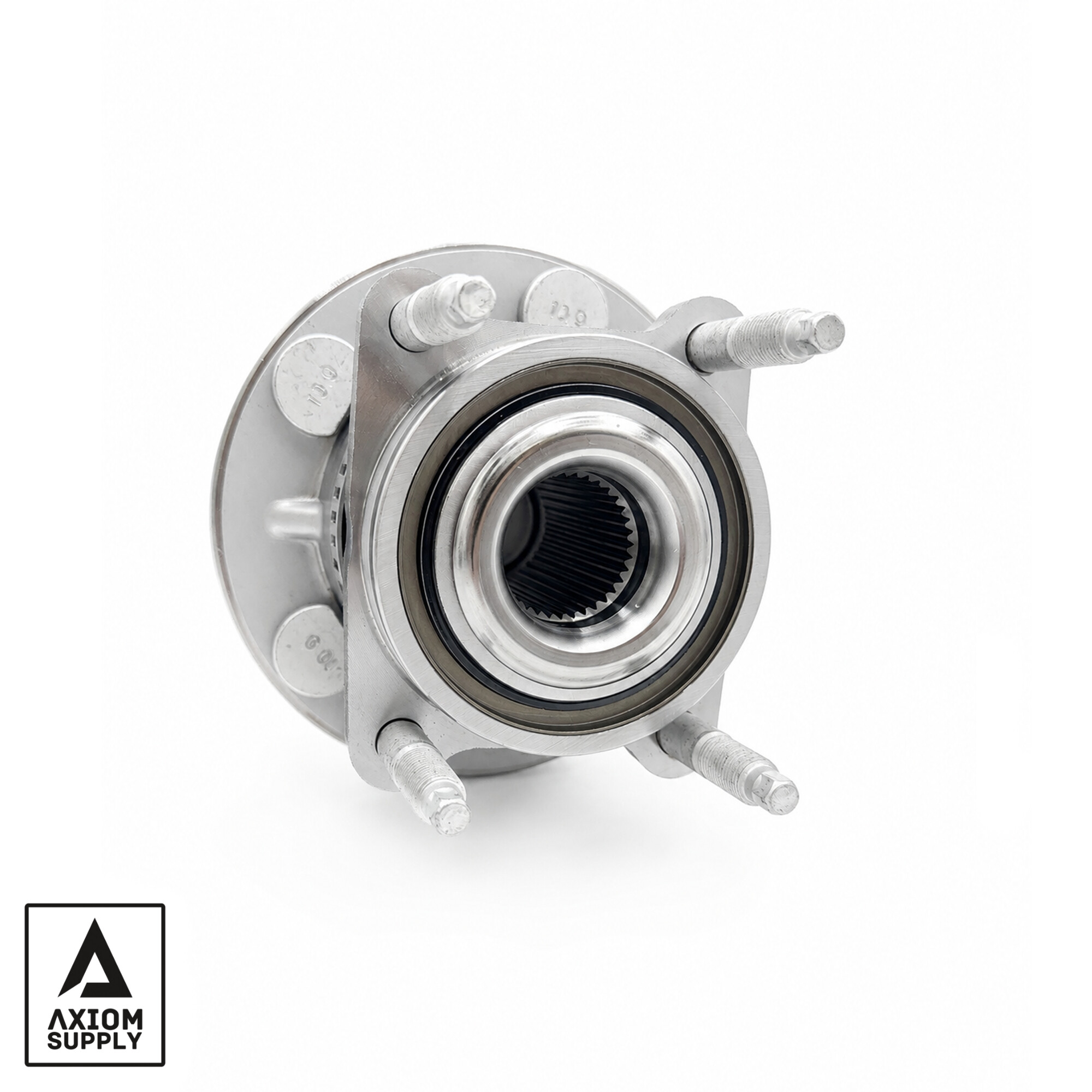

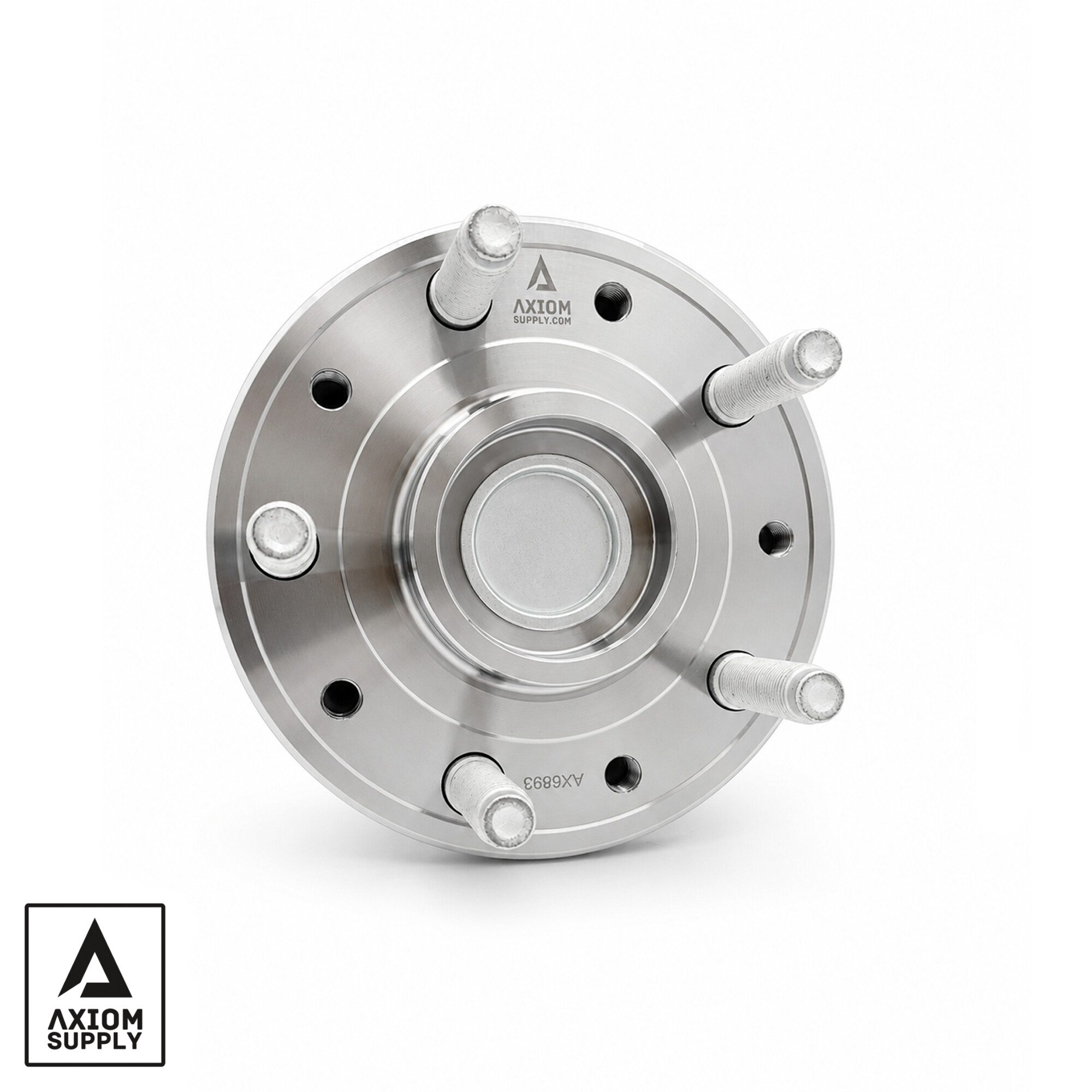

The Axiom Supply Rear Wheel Bearing and Hub Assembly is engineered for Jeep Wrangler JL applications utilizing the heavy-duty Dana 44 Full-Float rear axle system. Unlike a traditional semi-floating rear axle, the full-float design allows the hub and spindle to support the vehicle’s weight while the axle shaft primarily transfers drivetrain torque.

This creates a stronger, more serviceable axle configuration ideally suited for oversized tires, demanding trails, increased vehicle weight, and hard off-road use. Axiom Supply’s heavy-duty hub assembly incorporates premium tapered roller bearings and a robust hub structure engineered to minimize movement and maintain consistent wheel support under load.

The result is improved durability, dependable wheel stability, and long service life whether your Wrangler is navigating technical trails, running oversized tires, towing, or simply needs a premium replacement for the factory full-float hub. For earlier JL vehicles, this hub is also an excellent solution for builds utilizing an applicable Dana 44 Full-Float axle conversion.

الملائمة:

This premium rear wheel bearing and hub assembly is designed for Jeep Wrangler JL models equipped with the Dana 44 Full-Float rear axle system.

ملاحظات ملاءمة:

• 2024-2026 Wrangler JL – Direct replacement for applicable factory-equipped Dana 44 HD Full-Float rear axle applications, including Rubicon-series models where originally equipped.
• 2018-2023 Wrangler JL – Compatible when the vehicle has been upgraded or converted to the corresponding Dana 44 Full-Float rear axle configuration. This is not a direct replacement for the original semi-floating rear axle used on standard 2018-2023 JL applications.
• Verify your existing hub or axle configuration against Jeep OE numbers 68639320AA/68521393AB before ordering.

الميزات:

• Heavy-Duty Tapered Roller Bearings – Designed to handle increased radial and axial loads created by oversized tires, aggressive off-road driving, towing, and demanding terrain.
• Dana 44 Full-Float Design – Engineered specifically for full-floating rear axle applications where the hub and spindle support vehicle weight independently from the axle shaft.
• High-Strength Construction – Built with a robust hub body and premium bearing components for dependable performance under severe operating conditions.
• Premium Wheel Studs – High-strength M14 x 1.5 wheel studs provide secure wheel retention and OE-style installation.
• 5×5 Bolt Pattern – Factory-style 5×127 mm wheel bolt pattern for applicable Jeep Wrangler JL configurations. The supplier’s engineering drawing for 68639320AA confirms the 5×127 pattern and M14x1.5 stud configuration.
• Direct Bolt-On Design – Complete hub and bearing assembly designed for straightforward installation on the applicable Dana 44 Full-Float spindle.

يشمل:

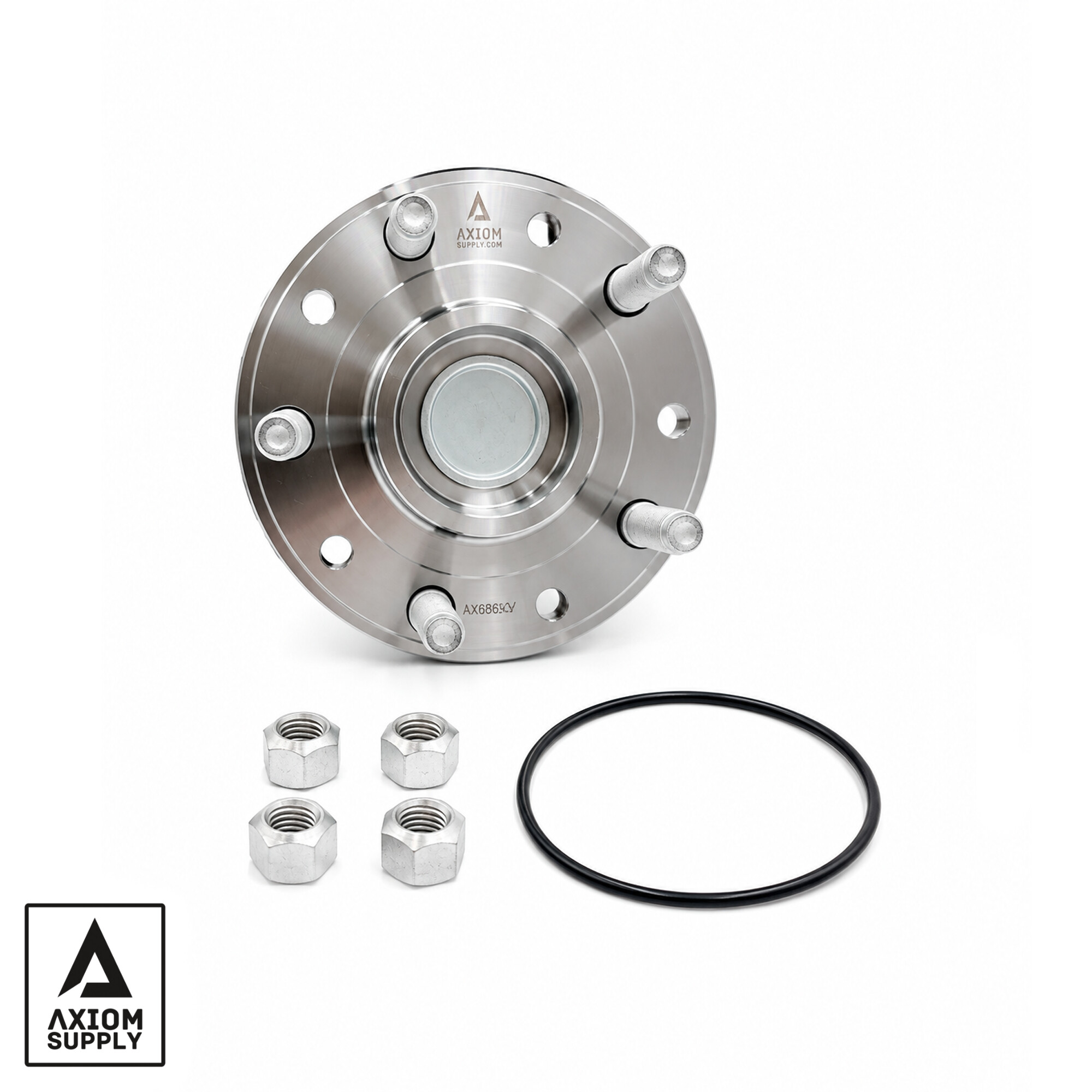

• (1) Rear Wheel Bearing and Hub Assembly, Wheel Studs Installed, plus nuts and O-ring.
• Fits Driver or Passenger Side

Installation:

• Designed for the Dana 44 Full-Float rear axle configuration.
• Because axle and conversion configurations can vary, always follow the appropriate Jeep or axle manufacturer’s installation and torque specifications for your specific application.

Interchange:

Jeep/Mopar 68639320AA/68521393AB, Axiom Supply AX6863

The Axiom No-Nonsense Lifetime Warranty:

Our wheel hub and bearing assemblies are warrantied for life to the original purchaser against any manufacturer defects, premature wear, or breakage. Push it to the limit – we don’t care.

If the part lets you down, we will make it up to you!

Jeep Wrangler (JL):

2018-2026

Rear Driver or Passenger Side Designed for Dana 44 Full-Float rear axle applications

التفاصيل

• Fits: 18-26 Jeep Wrangler JL
• الموقع: خلفي
• Warranty: Lifetime Warranty

✅ توافق المركبات

• 2018 – 2026 Jeep Wrangler Sport S
• 2018 – 2026 Jeep Wrangler Sport
• 2018 – 2022 Jeep Wrangler Unlimited Sport S
• 2018 – 2022 Jeep Wrangler Unlimited Sport
• 2018 – 2019 Jeep Wrangler Unlimited Moab
• 2018 – 2026 Jeep Wrangler Rubicon
• 2018 – 2022 Jeep Wrangler Unlimited Rubicon
• 2018 – 2022 Jeep Wrangler Unlimited Sahara
• 2021 – 2022 Jeep Wrangler Unlimited Rubicon 392
• 2021 – 2022 Jeep Wrangler Unlimited High Altitude
• 2021 – 2022 Jeep Wrangler Unlimited High Altitude 4xe
• 2021 – 2021 Jeep Wrangler Unlimited Islander
• 2021 – 2021 Jeep Wrangler 80th Anniversary
• 2021 – 2022 Jeep Wrangler Unlimited Rubicon 4xe
• 2021 – 2021 Jeep Wrangler Unlimited Freedom
• 2021 – 2022 Jeep Wrangler Unlimited Sahara Altitude
• 2021 – 2022 Jeep Wrangler Unlimited Sport Altitude
• 2021 – 2022 Jeep Wrangler Unlimited Willys
• 2021 – 2022 Jeep Wrangler Unlimited Willys Sport
• 2021 – 2026 Jeep Wrangler Willys
• 2021 – 2022 Jeep Wrangler Unlimited Sahara 4xe
• 2021 – 2021 Jeep Wrangler Unlimited 80th Anniversary
• 2021 – 2024 Jeep Wrangler Willys Sport
• 2021 – 2021 Jeep Wrangler Islander
• 2021 – 2021 Jeep Wrangler Freedom
• 2022 – 2022 Jeep Wrangler Unlimited High Tide
• 2023 – 2025 Jeep Wrangler Willys 4xe
• 2023 – 2023 Jeep Wrangler Freedom
• 2023 – 2023 Jeep Wrangler High Altitude
• 2023 – 2025 Jeep Wrangler High Altitude 4xe
• 2023 – 2023 Jeep Wrangler High Tide
• 2023 – 2024 Jeep Wrangler Rubicon 392
• 2023 – 2026 Jeep Wrangler Sahara
• 2023 – 2025 Jeep Wrangler Rubicon 4xe
• 2023 – 2025 Jeep Wrangler Sahara 4xe
• 2023 – 2023 Jeep Wrangler Sahara Altitude
• 2023 – 2023 Jeep Wrangler Sport Altitude
• 2024 – 2025 Jeep Wrangler Rubicon 392 Final Edition
• 2024 – 2025 Jeep Wrangler Sport S 4xe
• 2024 – 2026 Jeep Wrangler Rubicon X
• 2024 – 2025 Jeep Wrangler Rubicon X 4xe
• 2026 – 2026 Jeep Wrangler Moab 392
• 2026 – 2026 Jeep Wrangler Willys ’41
• 2026 – 2026 Jeep Wrangler Willys 392
• 2026 – 2026 Jeep Wrangler 85th Anniversary Edition
