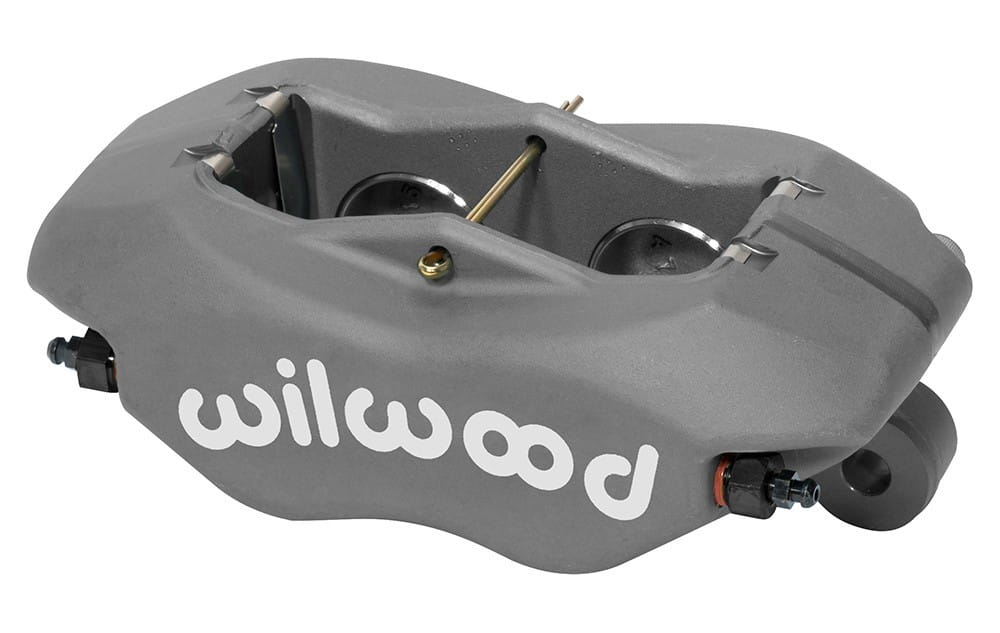

Wilwood Forged Dynalite Brake Caliper 120-6818 (4-Piston, 1.75″)

The Forged Dynalite is the base caliper in most Wilwood bolt-on disc brake kits and is used across many forms of motorsport. Stress-flow forging aligns the metal grain with the caliper body, making it the strongest caliper in its class with less deflection, a firmer pedal and better stopping power.

It has Wilwood SRS stainless steel bridge plates (no pad gouging, less pad rattle and squeal), high-temperature seals, stainless steel pistons, internal fluid passages and four-corner bleed screws, so one caliper can be mounted in any position. Uses the same 7112 brake pad as all earlier Dynalite versions.

Specifications

• Brand: Wilwood
• Part number: 120-6818
• UPC: 889545005073
• Pistons: 4 x 1.75″ stainless (total area 4.80 in²)
• Rotor width: 0.38″ (min 0.25″); rotor diameter 10.00″ to 13.06″
• Pads: type 7112 (pad area 6.36 in², volume 2.1 in³)
• Mount: lug type, universal side, 5.25″ centers, 0.39″ holes, 2.03″ mount height
• Inlet thread: 1/8-27 NPT
• Material: forged aluminum, Type III anodize
• Weight: 3.4 lb
• Uses: street rod, street performance, rally, road race, off-road, drag racing
• Condition: new
