طقم تويوتا لكابلات البطارية المزدوجة والأدوات SDHQ Offroad

Our SDHQ BUILT Dual Battery Wiring for your 2007-2021 Toyota Tundra includes everything you need to wire your SDHQ Dual Battery System. This Wiring Kit is designed to be used with a battery isolator between the batteries.

الميزات الرئيسية:

• Fits 2007-Current Toyota Tundra
• Includes everything needed to wire your SDHQ Dual Battery Mount System
• Blue Sea Systems 500 amp ACR (Auto Charging Relay) with Manual Control
• Includes (2) 3/8 inch, (1) 5/16 inch, and (2) 1/4 inch terminations per Terminal.
• Upgraded HD Battery Terminals for Secondary Battery.
• كابلات SAE J-1127-SGX مكسوة بالكامل وعالية الجودة

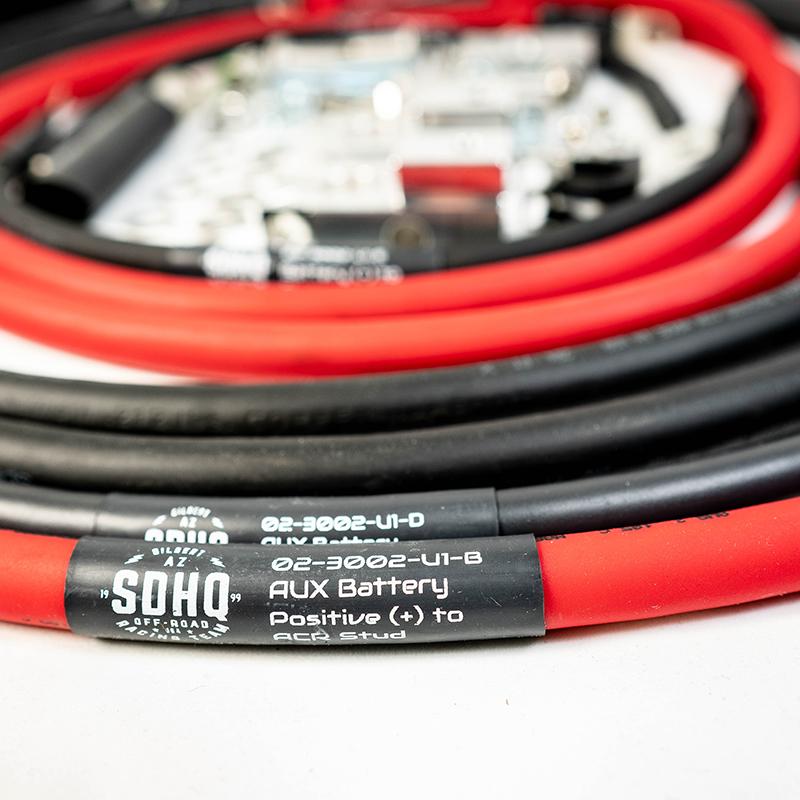

• 2 AWG Main Cables (main to aux battery and to ACR)
• ت nâng cấp 4 AWG thứ hai sang nối đất khung
• 6 AWG بطارية رئيسية إلى هيكل ترقية
• ترقية البطارية المساعدة 6 AWG إلى الهيكل
• Upgraded ground wires provide better connection between both batteries and Body/Frame grounds.

Blue Sea ACR Features:

• Circuit allows up to 500 Amps continuous draw and 700 Amps for 5 minutes.
• Cranking rating of 1450 at 30 seconds.
• Live Current Switching up to 300 amps.
• Circuit is designed to auto charge the 2nd battery when the vehicle is running, but isolates the 2nd battery when the vehicle is off. Leaving the second battery for emergency starting.
• Manual switch on the circuit allows the batteries to combine or isolate.
• Optional Remote switch control and LED output to indicate when the batteries are combined, isolated or in lockout.
• Undervoltage lockout below 9.6 Volts. Overvoltage lockout above 16.2 Volts.

Tech Notes:

• Recommended to use 2 new matching AGM or Sealed batteries.
• Torque Specifications:
• Torque 1/4″ – 20 Hardware to 4 ft-lb.
• Torque 5/16″ – 18 Hardware to 8 ft-lb.
• Torque 1/8″ – 16 Hardware to 18 ft-lb.

Battery Cable Features and Specs:

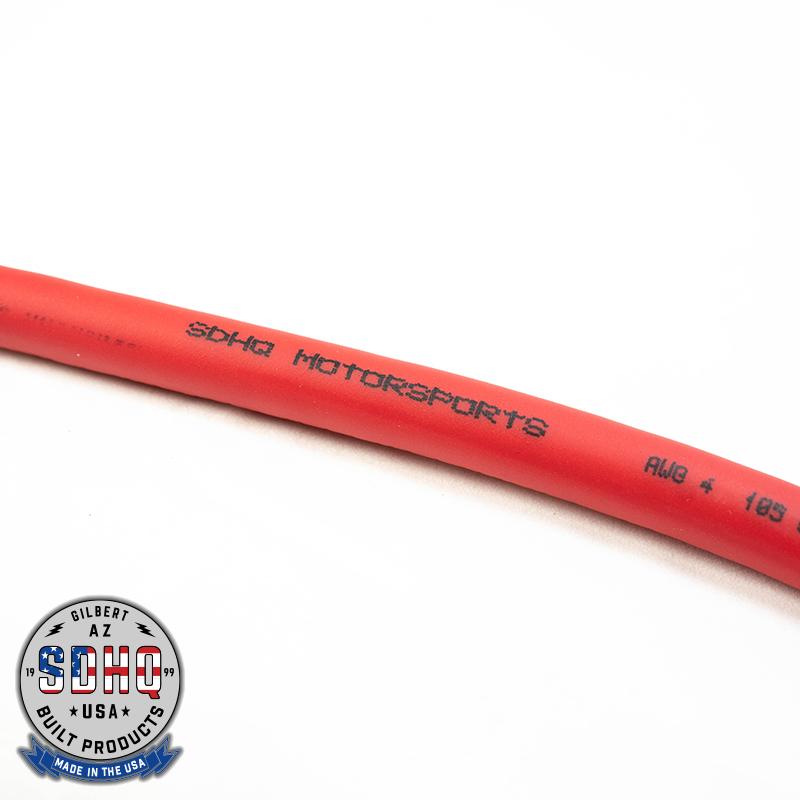

• الميزات: AWG 2, stands for american wire gauge – size 2, or as most refer to it as 2 gauge. 105 C, is the heat rating in degrees Celsius for continuous use. SAE J378C is the marine specification it meets, and J1127 is the automotive specification it meets.
• مواصفات Conductor Size: 6 AWG has 266 strands of copper (30 AWG ea strand, rope lay Class K) with an Outside Diameter of stranded copper at 0.192 inches (nominal) and an overall Outside Diameter of finished cable at 0.390 inches (nominal). The 6 AWG is rated to handle 120 amps continuous outside of engine space (102 amps continuous inside engine space) and weighs 0.189 lbs per foot

ما هو المكونات:

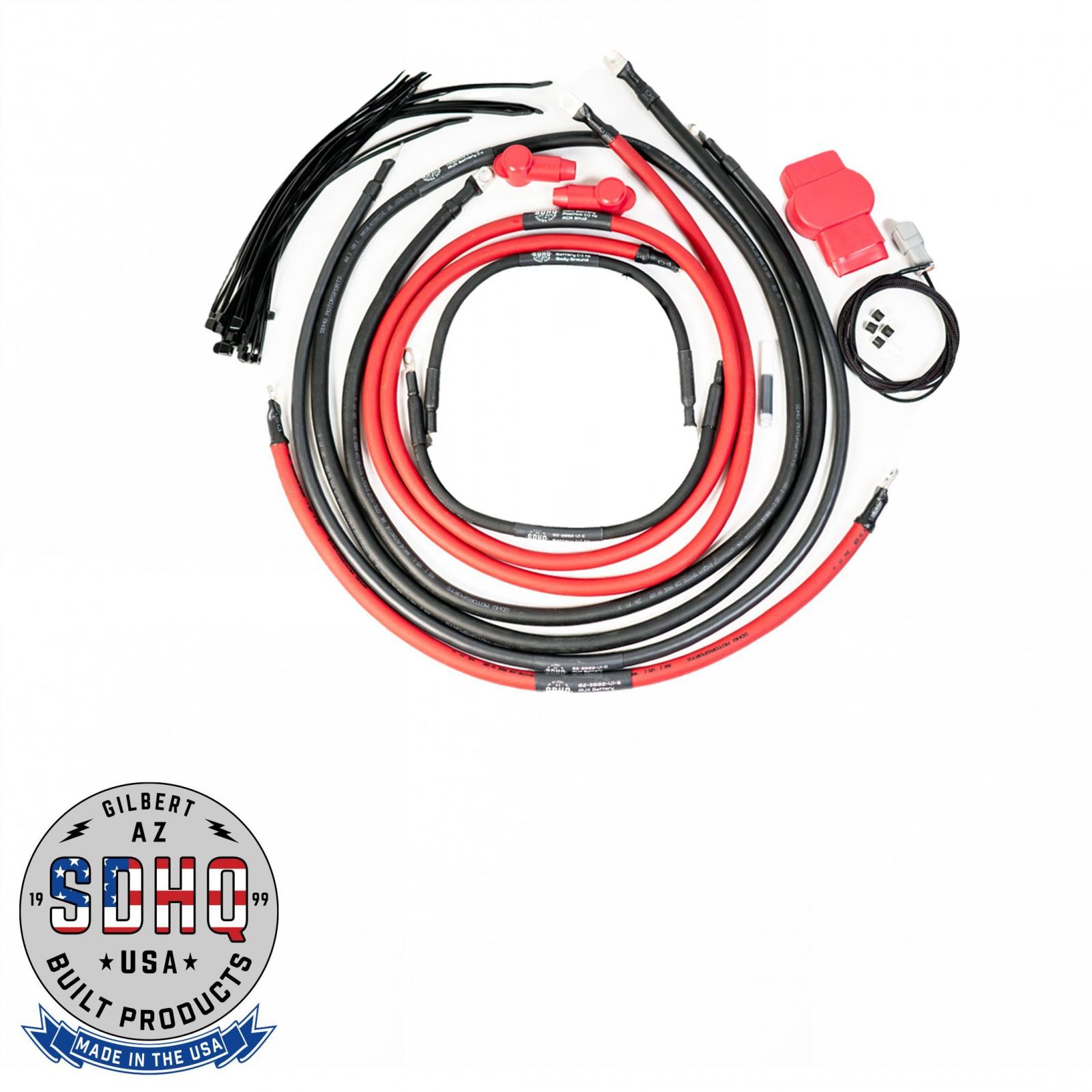

• Toyota Cable Kit
• Optional Blue Sea ML-ACR
• عدة الأجهزة

✅ توافق المركبات

• 2007 – 2013 Toyota Tundra
• 2007 – 2025 Toyota Tundra Limited
• 2007 – 2011 Toyota Tundra SR5
• 2010 – 2025 Toyota Tundra Platinum
• 2014 – 2025 Toyota Tundra 1794 Edition
• 2014 – 2025 Toyota Tundra SR
• 2014 – 2025 Toyota Tundra SR5
• 2015 – 2017 Toyota Tundra TRD Pro
• 2019 – 2025 Toyota Tundra TRD Pro
• 2021 – 2021 Toyota Tundra Nightshade
• 2021 – 2021 Toyota Tundra Trail
• 2022 – 2025 Toyota Tundra Capstone
