Polaris Steering Tie Rod System RZR Pro XP 20 – 26 Axiom Supply

The Axiom Supply Heavy-Duty Tie Rod System is engineered as a complete steering upgrade exclusively for Polaris RZR Pro Xp models equipped with an M16 x 1.5 inner steering-rack connection and factory-style tapered spindle mounting points.

The Axiom Supply Heavy-Duty Tie Rod System was developed specifically for Polaris RZR Pro Xp owners who need a stronger and more precise steering system than the lightweight factory tie rods can provide. The system is built around precision-machined 6061-T6 billet aluminum tie-rod bodies paired with heavy-duty 5/8 inch chromoly heim joints.

This combination provides increased rigidity, reduced steering deflection, and the articulation required for aggressive trail riding, rock crawling, high-speed desert driving, larger tires, and modified suspension systems. At the steering rack, black zinc-plated clevis adapters attach through the factory M16 x 1.5 mounting points.

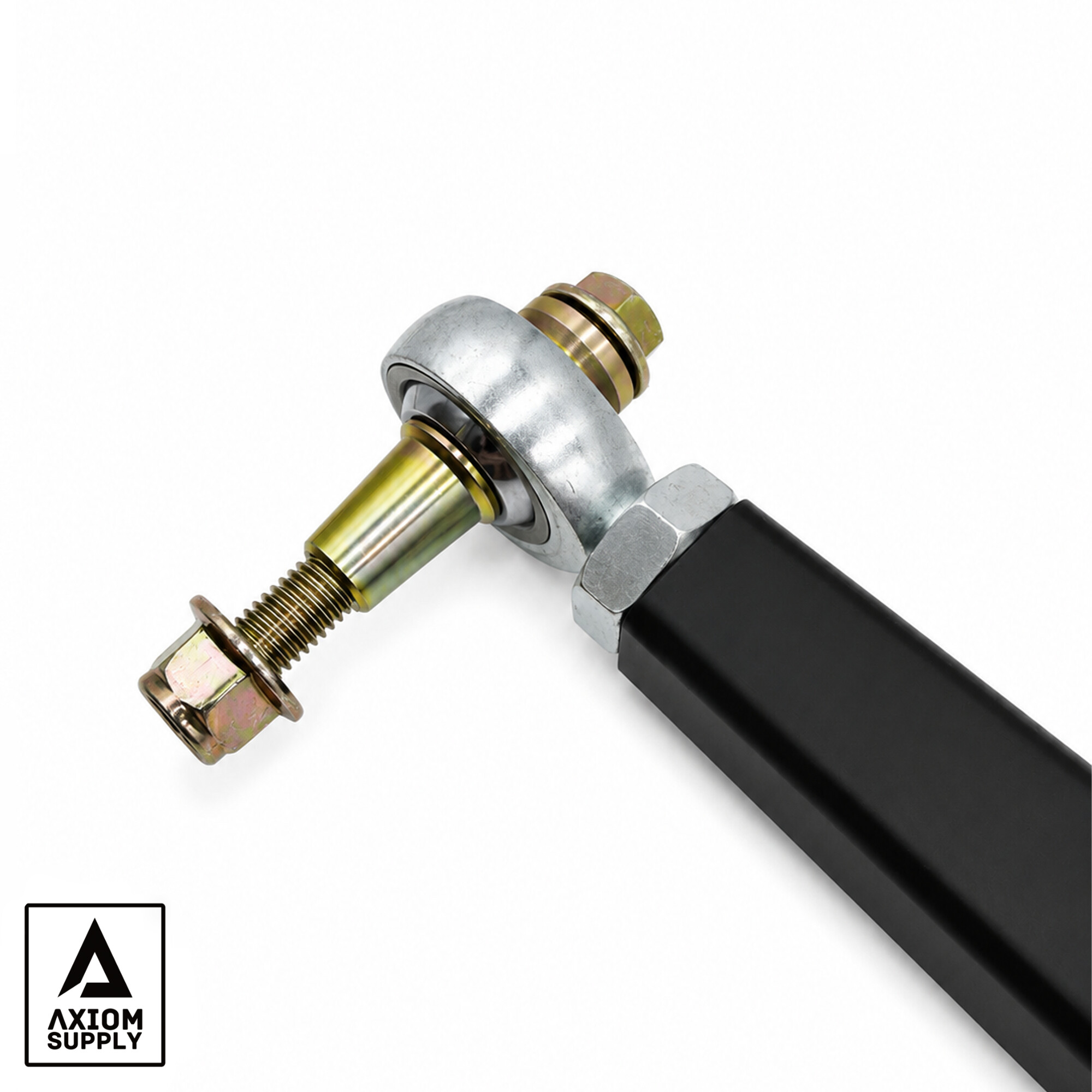

Each clevis captures the inner heim joint from both sides, distributing steering loads through a strong and properly supported connection. At the spindle, precision-machined tapered lower misalignment spacers seat securely inside the factory openings.

Matching upper spacers correctly position the outer heim joints and provide the clearance necessary for smooth steering articulation. 9 flange bolts and locking flange nyloc nuts securely hold the outer assemblies together.

Every mounting component is protected with either a black zinc or gold zinc corrosion-resistant finish. This provides lasting protection against mud, water, moisture, and the demanding conditions encountered during off-road use.

The result is a complete steering upgrade designed to deliver responsive handling, dependable strength, and long-term durability for 2020-2026 Polaris RZR Pro Xp two-seat and four-seat models.

الملائمة:

Polaris RZR Pro Xp

RZR Pro Xp 2-Seat: 2020-2026 RZR Pro Xp 4-Seat: 2020-2026

ملاحظات ملاءمة:

• Designed exclusively for Polaris RZR Pro Xp two-seat and four-seat models utilizing an M16 x 1.5 inner steering-rack connection.
• Replaces the complete driver- and passenger-side factory tie-rod assemblies.
• Designed around heavy-duty chromoly heim joints with a 5/8 inch inner bore.
• Fits models utilizing the factory-style tapered outer spindle connection.
• Not compatible with factory OEM inner or outer tie-rod ends.
• Minor modification of the factory steering-rack boots may be required to fit securely around the inner clevis assemblies.
• Always verify the M16 x 1.5 steering-rack connection and tapered spindle configuration before ordering.

الميزات:

• Heavy-Duty 6061-T6 Billet Tie-Rod Bodies – Precision-machined aluminum tie-rod bodies provide substantially greater rigidity and resistance to bending than lightweight factory steering links.
• 5/8 inch Chromoly Heim Joints – High-strength chromoly rod ends deliver precise steering response, increased durability, and an extended range of motion for factory and modified suspension systems.
• High-Articulation Steering Design – Precision misalignment spacers allow the heim joints to operate through an increased range of steering and suspension travel without binding.
• M16 x 1.5 Inner Clevis System – Heavy-duty clevis adapters connect directly to the factory steering rack and support each inner heim joint from both sides for a strong, properly aligned connection.
• Black Zinc-Plated Inner Hardware – The inner clevis adapters and M16 x 1.5 rack bolts feature a durable black zinc finish for protection against corrosion, mud, water, and harsh off-road environments.
• Precision Tapered Spindle Spacers – Vehicle-specific lower misalignment spacers seat securely inside the factory tapered spindle openings for accurate alignment and dependable retention.
• Matching Upper Misalignment Spacers – Precision-machined upper spacers correctly position the outer heim joints while providing the clearance required for steering articulation and suspension travel.
• Gold Zinc-Plated Outer Hardware – The tapered spacers, upper spacers, Grade 10.9 flange bolts, and flange nyloc nuts are protected with a corrosion-resistant gold zinc finish.
• Fully Adjustable Alignment – Threaded heim joints and jam nuts allow precise toe adjustment during installation and future suspension alignments.
• Complete Left- and Right-Side System – Includes the tie-rod bodies, heim joints, adapters, spacers, and mounting hardware required to upgrade both sides of the vehicle.

يشمل:

• (2) Axiom Supply 6061-T6 billet aluminum tie-rod bodies
• (4) 5/8 inch-bore chromoly heim joints
• (2) Black zinc-plated inner clevis adapters
• (2) Black zinc-plated M16 x 1.5 steering-rack bolts
• (2) Inner 5/8 inch heim-joint mounting bolts with matching hardware
• (2) Gold zinc-plated tapered lower misalignment spacers
• (2) Gold zinc-plated upper misalignment spacers
• (2) Gold zinc-plated Grade 10.9 outer flange bolts
• (2) Matching gold zinc-plated flange nyloc nuts
• Required jam nuts and installation hardware

One complete system services both the driver and passenger sides of the vehicle.

The Axiom No-Nonsense Lifetime Warranty:

Our suspension and steering components are warrantied for life to the original purchaser against any manufacturer defects, premature wear, or breakage. Push it to the limit – we don’t care. If the part lets you down, we will make it up to you!

التفاصيل

• Fits: 20-26 Polaris RZR Pro XP
• Warranty: Lifetime Warranty

✅ توافق المركبات

• 2020 – 2021 Polaris RZR PRO XP
• 2020 – 2021 Polaris RZR PRO XP 4
• 2020 – 2020 Polaris RZR PRO XP 4 Orange Madness LE
• 2020 – 2025 Polaris RZR PRO XP 4 Premium
• 2020 – 2026 Polaris RZR PRO XP 4 Ultimate
• 2020 – 2020 Polaris RZR PRO XP Orange Madness LE
• 2020 – 2025 Polaris RZR PRO XP Premium
• 2020 – 2026 Polaris RZR PRO XP Ultimate
• 2021 – 2026 Polaris RZR PRO XP Sport
• 2021 – 2021 Polaris RZR PRO XP Sport Rockford Fosgate LE
• 2022 – 2026 Polaris RZR PRO XP 4 Sport
• 2022 – 2022 Polaris RZR Pro XP 4 Ultimate Rockford Fosgate LE
• 2022 – 2022 Polaris RZR Pro XP Ultimate Rockford Fosgate LE
