08-21 نظام البطارية المزدوجة LC200 SDHQ Offroad

This dual battery kit is designed to deliver a reliable and durable solution for Land Cruiser owners who need additional power for their off-road and camping accessories. The kit's components are designed for a straightforward install, ensuring that even those with limited mechanical knowledge can set up a dual battery system with ease. With this setup, you can confidently power fridges, lights, and other equipment without fear of draining your vehicle's start-up battery.

توافق المركبات:

• Specifically for the 2008-2021 Toyota 200 Series Land Cruiser models.

الميزات الرئيسية:

• A complete, high-quality dual battery system requiring no additional components for installation.
• Engineered for optimal fit and finish with 3D CAD design.
• Bolt-on installation with no drilling or trimming needed.
• Provides better weight distribution than systems with batteries placed side by side.
• Secondary battery mount utilizes triangulated mounting positions for enhanced strength.
• Accommodates batteries up to 11 1/4 inch W x 7 inch D x 7 3/8 inch T.
• Durable powder-coated black finish.
• Integrated mount for the Blue Sea Systems Automatic Charging Relay (ACR).
• Batteries are not included; it is recommended to use 2 new matching batteries.

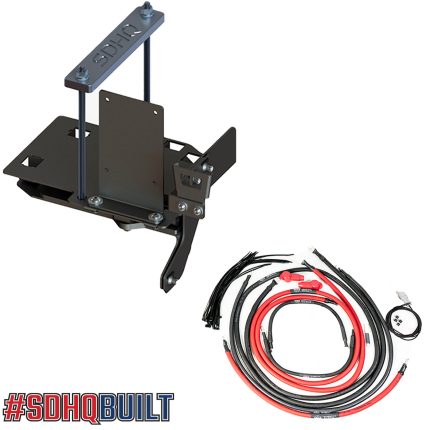

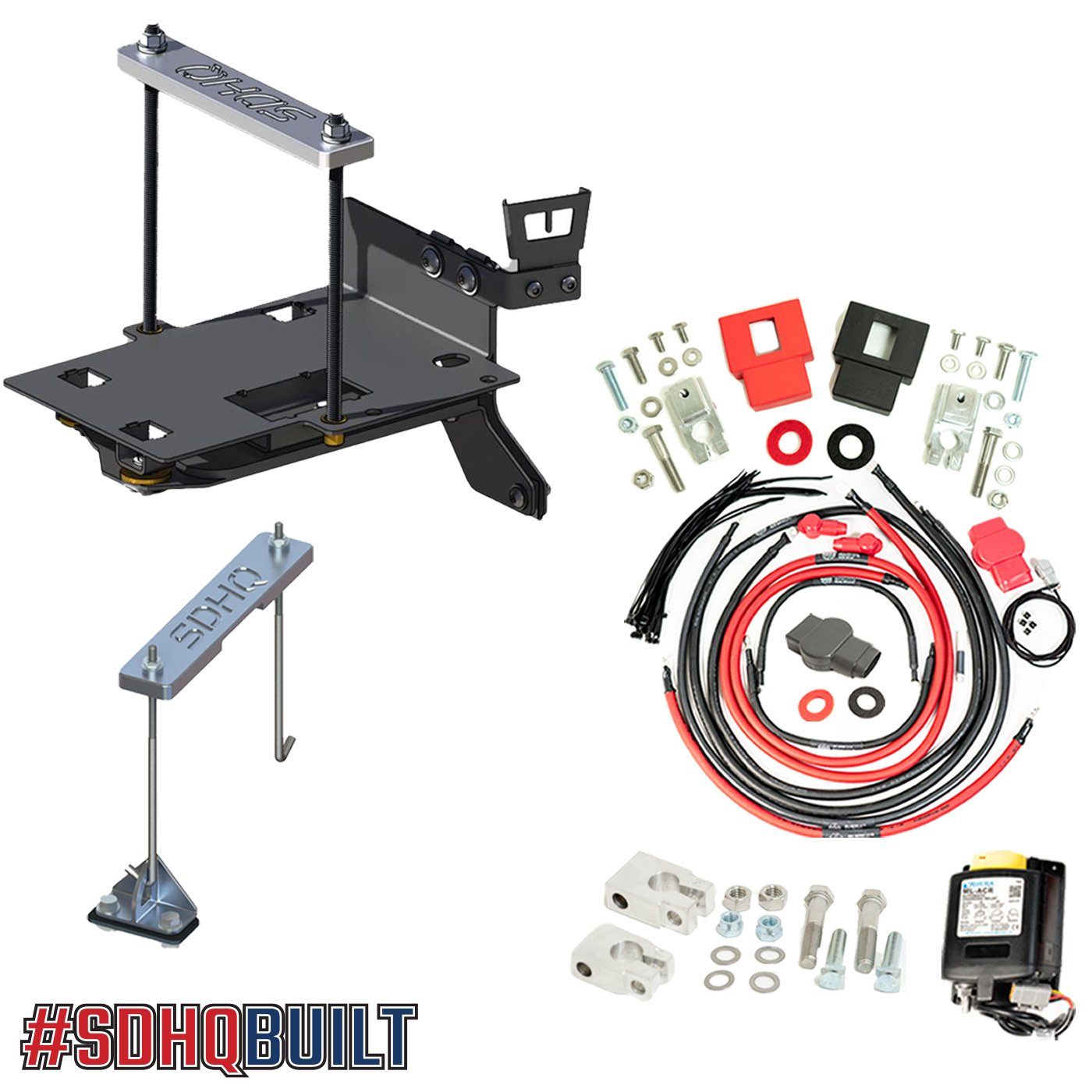

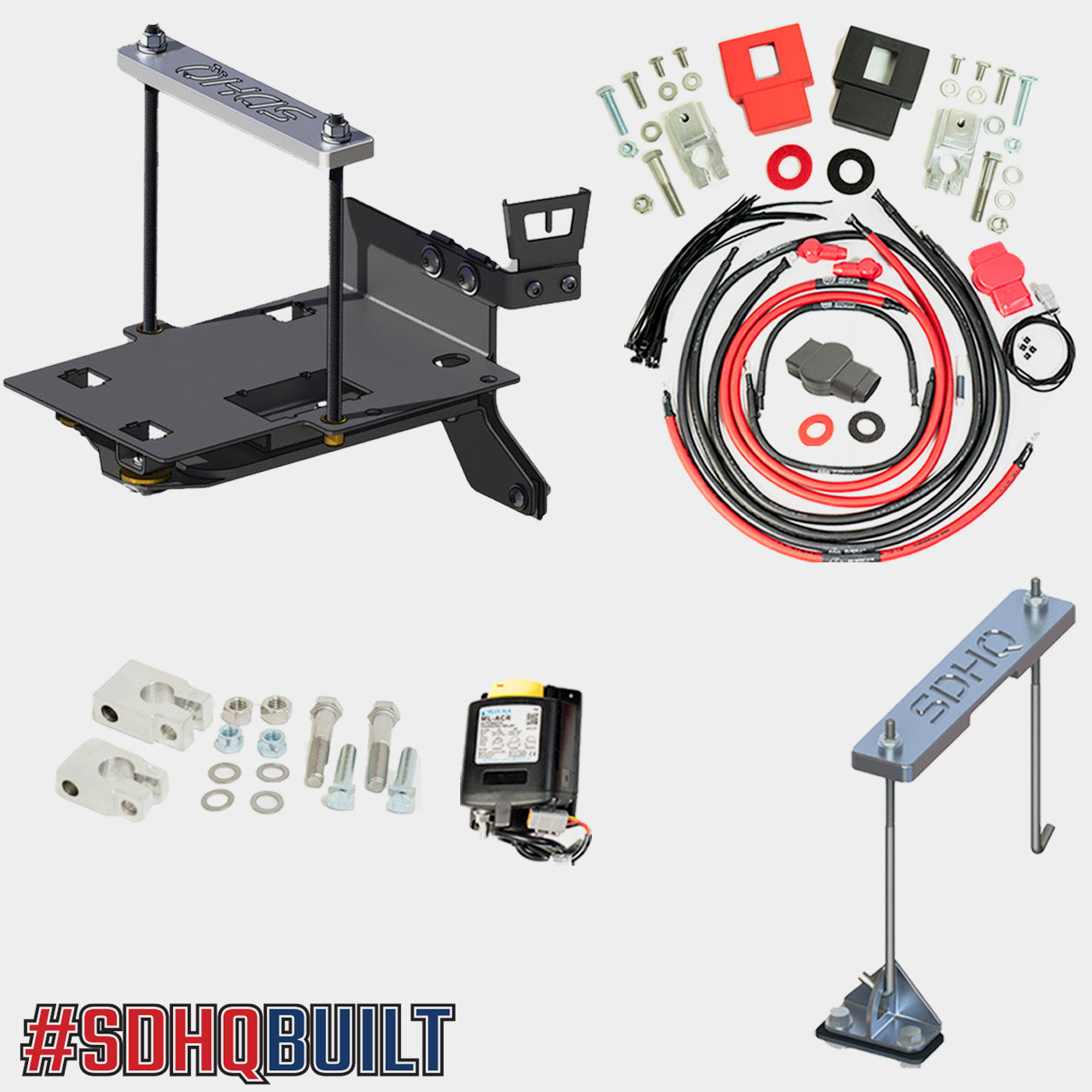

Included Components:

• SDHQ Dual Battery Wiring Kit - SDHQ-50-3002-U1: Ensures a reliable connection between the batteries and vehicle.
• HD Billet Main Battery Terminal Kit - SDHQ-50-3003-C2: For the primary battery, allows for multiple accessory connections.
• 34R Main Billet Battery Hold Down - SDHQ-50-3005-U1: Secures the main battery firmly in place.

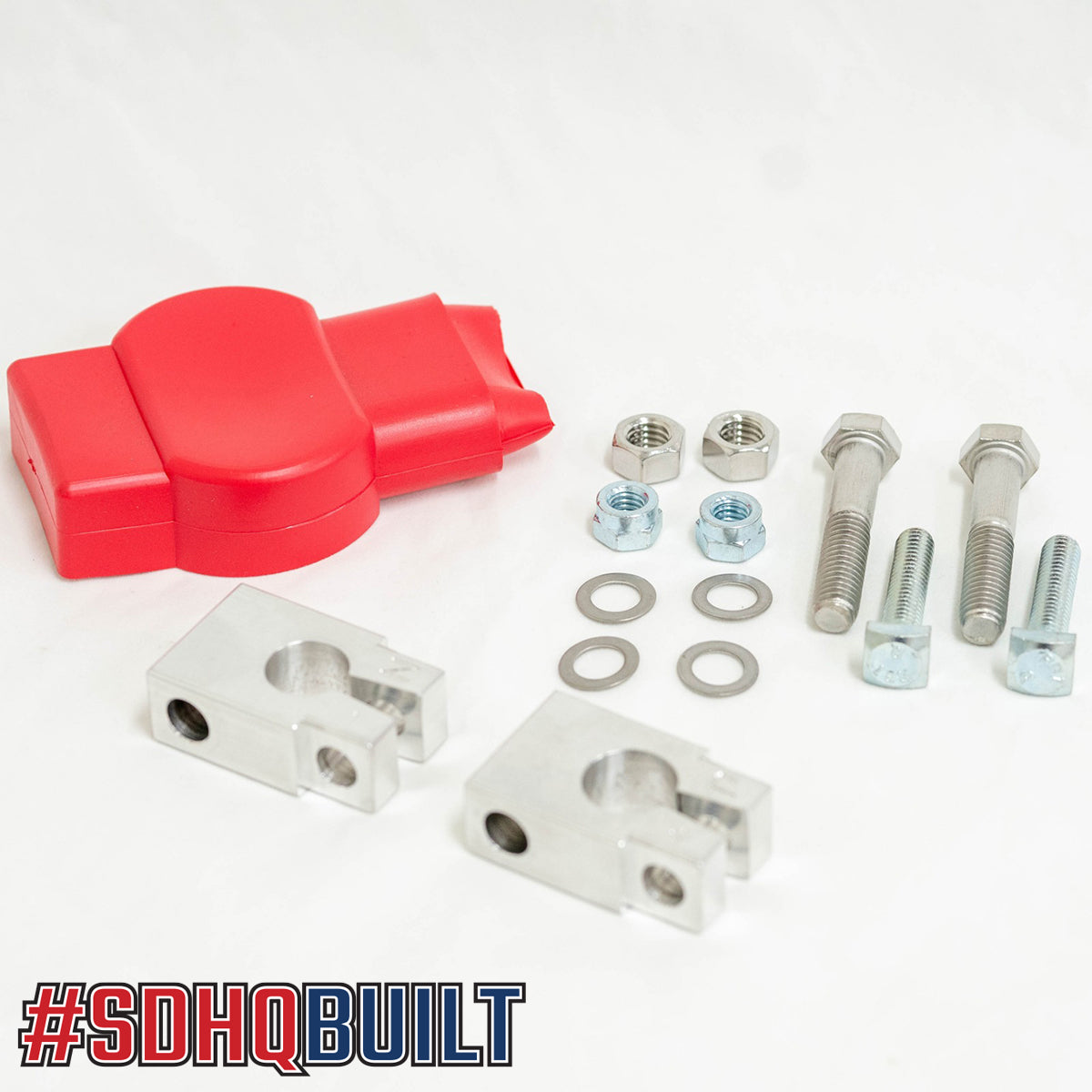

• HD Billet Secondary Battery Terminal Kit - SDHQ-02-3003-C1: For connecting the secondary battery.
• Blue Sea Systems ACR: Manages battery charging and isolation, supports up to 500 Amps continuous and 1450 Amps for cranking.
• Secondary Battery Tray Kit - SDHQ-52-3001-200: For mounting the second battery in the engine compartment.
• Main Battery Hold Down Hardware Kit - SDHQ-52-3005-200: Replaces the OEM hold down with a more robust solution.
• Detailed Component Overview:

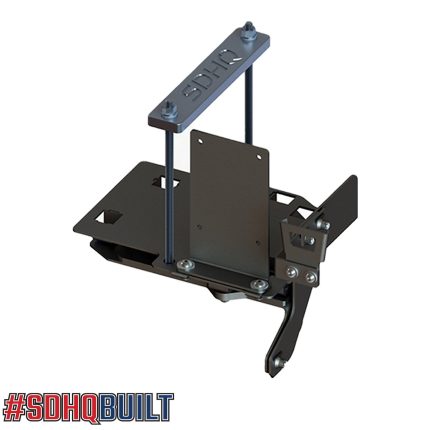

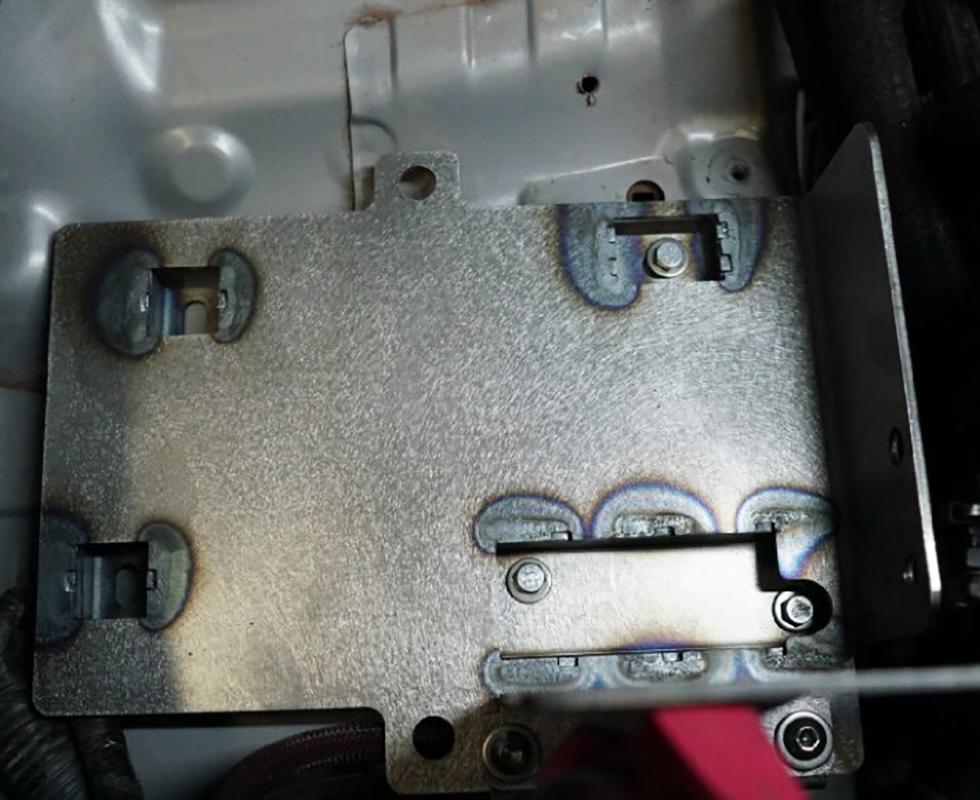

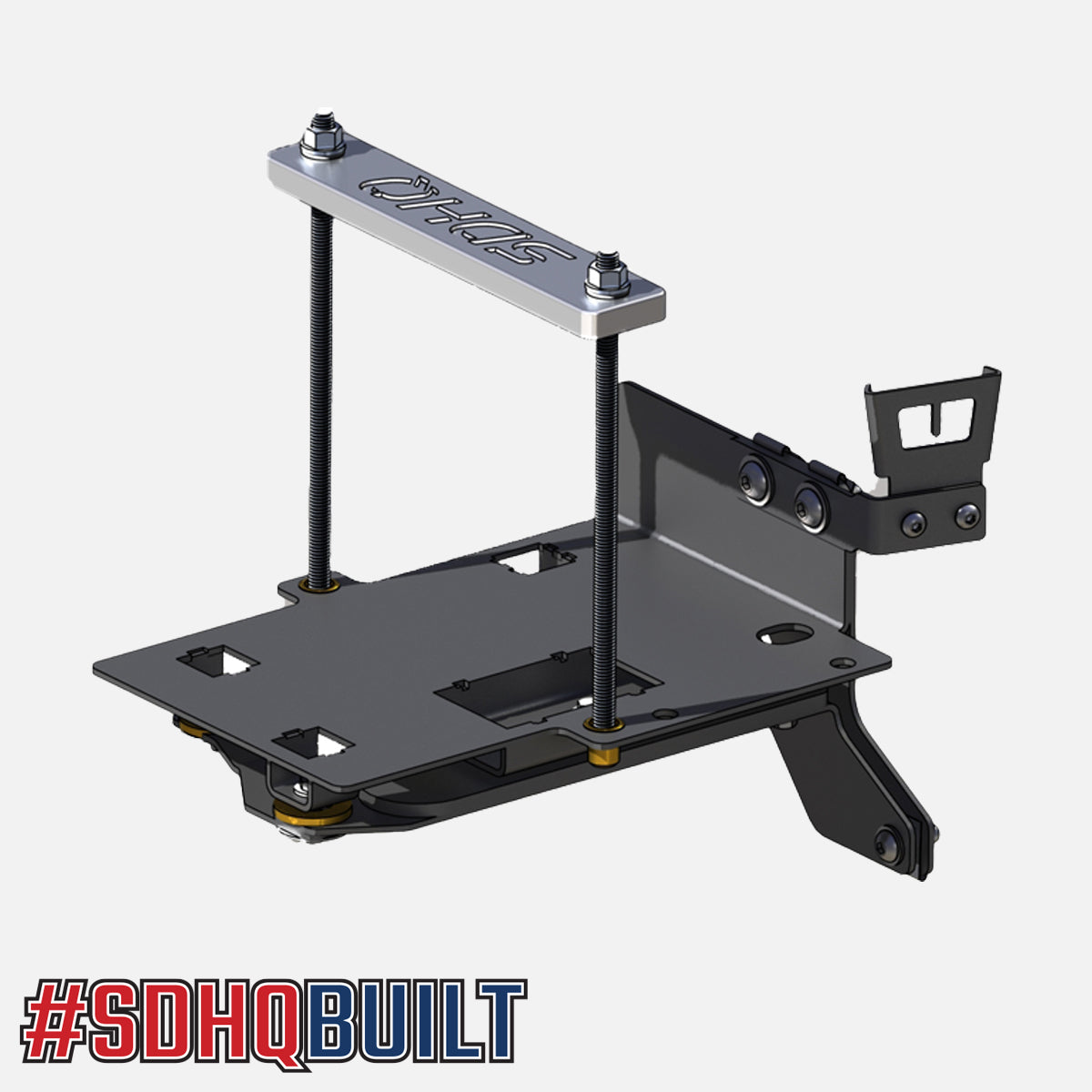

• Secondary Battery Tray Kit: Supports various battery group sizes and is designed to withstand harsh conditions with its powder coating.
• Billet Battery Terminal Upgrade Kit: Replaces OEM terminals with a more robust and versatile solution, including stainless steel hardware.
• Secondary Battery Billet Battery Terminals: Designed to be paired with the secondary battery, facilitating additional connections.
• Blue Sea Systems ACR: Provides automatic charging and isolation for the secondary battery, with manual override and LED indicators for status monitoring.

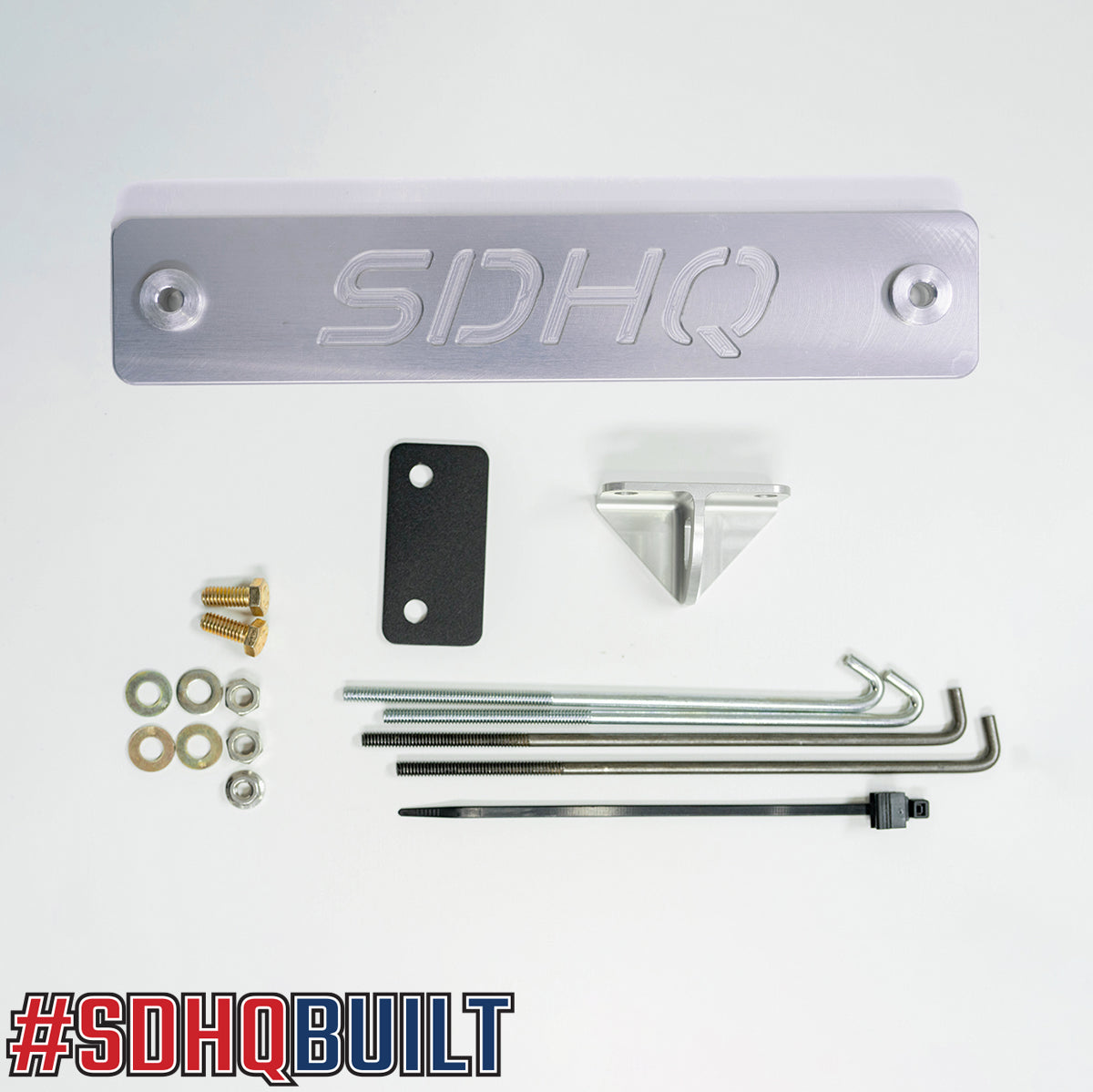

• Main Battery Billet Hold Down: Upgrades the primary battery hold down to a more durable solution made from 6061 aluminum, with minor drilling required for installation.
• تركيب البطارية
• Tray fits Group 24F, 34/34R (34R fits stock battery location) and 25/35.
• Fits batteries with dimensions up to 10 7/8 inch Wide x 6 7/8 inch Deep x 7 1/2 inch Tall (top of battery, not terminal).
• Does NOT fit Group 27 or 31 batteries.

✅ توافق المركبات

• 2008 - 2011 تويوتا لاند كروزر
• 2013 - 2021 تويوتا لاند كروزر
• 2020 - 2021 تويوتا لاند كروزر إصدار الهيريتيج
